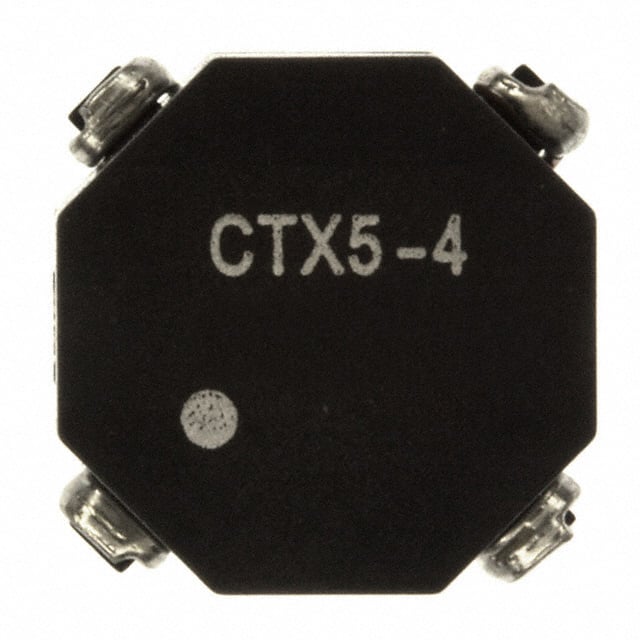

CTX5-4-R Eaton CTX5-4-R is a 2 coil inductor array with 4.9µH inductance per coil, rated at 2.2A with 14mOhm max DCR. Surface mount package, operating temperature -40°C to 85°C.
Mfr Part #:

CTX5-4-R

Available from 1 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
Eaton CTX5-4-R is a 2 coil inductor array with 4.9µH inductance per coil, rated at 2.2A with 14mOhm max DCR. Surface mount package, operating temperature -40°C to 85°C.
✓ Total Stock: 1,800 pcs
$ Price Range: $5.21 - $8.09

CTX5-4-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,800 pcs
On Request
1800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CTX5-4-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Number of Coils
Operating Temperature
Shielding
Tape & Reel
Tolerance
Width
View Similar Products (0)

CTX5-4-R Description

Short technical summary and product information.

The Eaton CTX5-4-R is a surface mount inductor array containing two coupled coils, each with an inductance of 4.9µH. It is designed for applications requiring compact magnetic components with multiple windings, such as DC-DC converters, EMI filtering, and signal coupling.



Key electrical specifications include a current rating of 2.2A and a maximum DC resistance of 14mOhm per coil. The component operates over a temperature range of -40°C to 85°C, making it suitable for industrial and automotive environments.



The device is housed in a nonstandard surface mount package measuring 13.97mm x 13.97mm x 6.35mm. It is unshielded and RoHS3 compliant with MSL 1 (unlimited) moisture sensitivity level.

CTX5-4-R Quick Information

Product Type: Inductor Array
Series: CTX5
Canonical Name: Eaton CTX5-4-R Inductor Array, 2 Coil, 4.9µH, Surface Mount
Subcategory: Arrays, Signal Transformers

CTX5-4-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CTX5-4-R Estimated Pricing

Qty Low High
1+ $8.09 $8.09
10+ $6.66 $6.66
25+ $6.12 $6.12
50+ $5.76 $5.76
100+ $5.49 $5.49
250+ $5.40 $5.40
600+ $5.22 $5.22
1,200+ $5.21 $5.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

CTX5-4-R Features

  • 2 coil inductor array with 4.9µH per coil.
  • Rated for 2.2A continuous current.
  • 14mOhm maximum DC resistance per coil.
  • Surface mount package, 13.97mm square body.
  • Operates from -40°C to 85°C.

CTX5-4-R Applications

  • Used in DC-DC converter input/output filtering.
  • Suitable for EMI suppression in power lines.
  • Ideal for signal coupling and transformer applications.
  • Applicable in industrial and automotive electronics.

CTX5-4-R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the Eaton CTX5-4-R?

Each coil has an inductance of 4.9µH.

What is the current rating of the CTX5-4-R?

The current rating is 2.2A.

What is the DC resistance of the CTX5-4-R?

The maximum DC resistance is 14mOhm per coil.

What is the operating temperature range of the CTX5-4-R?

The operating temperature range is -40°C to 85°C.

What is the package size of the CTX5-4-R?

The package dimensions are 13.97mm x 13.97mm x 6.35mm.

Is the CTX5-4-R RoHS compliant?

Yes, it is RoHS3 compliant.
