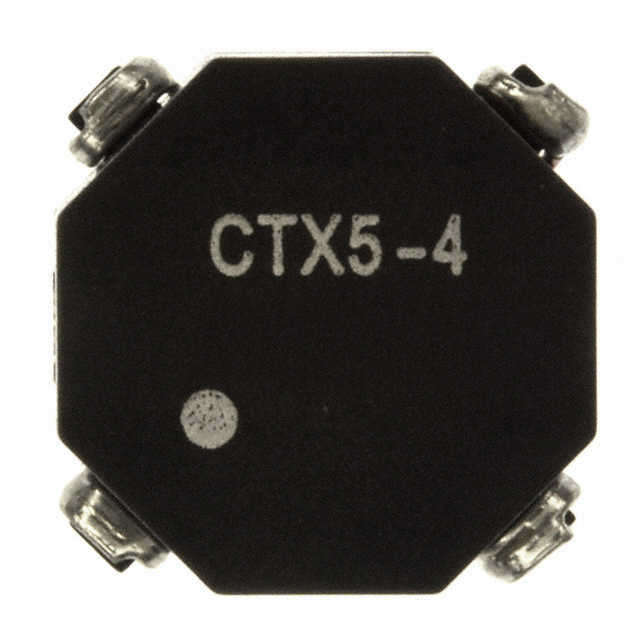

CTX5-4 CTX5-4 is a 2 coil coupled inductor array by Eaton - Electronics Division with 4.9 µH inductance, ±20% tolerance, and 2.2A current rating.
Mfr Part #:

CTX5-4

Available from 1 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
CTX5-4 is a 2 coil coupled inductor array by Eaton - Electronics Division with 4.9 µH inductance, ±20% tolerance, and 2.2A current rating.
✓ Total Stock: 464 pcs
$ Price Range: $2.07

CTX5-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
464 pcs
On Request
464 pcs On Request 1 On Request On Request 401 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CTX5-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Number of Coils
Operating Temperature
SVHC Present
Shielding
Storage Temperature
Tolerance
Width
View Similar Products (0)

CTX5-4 Description

Short technical summary and product information.

The CTX5-4 is a surface mount coupled inductor array featuring two coils with a nominal inductance of 4.9 µH per coil and a tolerance of ±20%. It is rated for a continuous current of 2.2 A with a maximum DC resistance of 14 mOhm. The component is unshielded and designed for surface mount assembly in a nonstandard package measuring 13.97 mm x 13.97 mm with a height of 6.35 mm.



This inductor array is suitable for use in DC-DC converters, noise filtering, and as a 1:1 transformer in applications requiring isolation between windings. It operates over an ambient temperature range of -40°C to +85°C and is compatible with standard surface mount reflow soldering processes. The part is RoHS3 compliant and has an MSL of 1 (unlimited).

CTX5-4 Quick Information

Product Type: Coupled Inductor Array
Series: OCTA-PAC
Canonical Name: CTX5-4 Eaton - Electronics Division 2 Coil Surface Mount Coupled Inductor 4.9 µH ±20%
Subcategory: Arrays, Signal Transformers

CTX5-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CTX5-4 Estimated Pricing

Qty Low High
600+ $2.07 $2.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

CTX5-4 Features

  • Two coil coupled inductor array design.
  • 4.9 μH inductance with ±20% tolerance.
  • Rated current of 2.2 A per coil.
  • Surface mount in a nonstandard package.
  • RoHS3 compliant with MSL 1 rating.

CTX5-4 Applications

  • Used in DC-DC converter circuits.
  • Suitable for noise filtering applications.
  • Ideal for buck and boost converters.
  • Can be used as a 1:1 isolation transformer.

CTX5-4 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of CTX5-4?

The inductance is 4.9 µH per coil.

What is the current rating of CTX5-4?

The current rating is 2.2 A.

What is the operating temperature range of CTX5-4?

The operating ambient temperature range is -40°C to +85°C.

Is CTX5-4 RoHS compliant?

Yes, it is marked as RoHS3 Compliant, but the compliance data is unverified.

What is the package size of CTX5-4?

The package is nonstandard, measuring 13.97 mm x 13.97 mm with a height of 6.35 mm.
