| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Coils | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

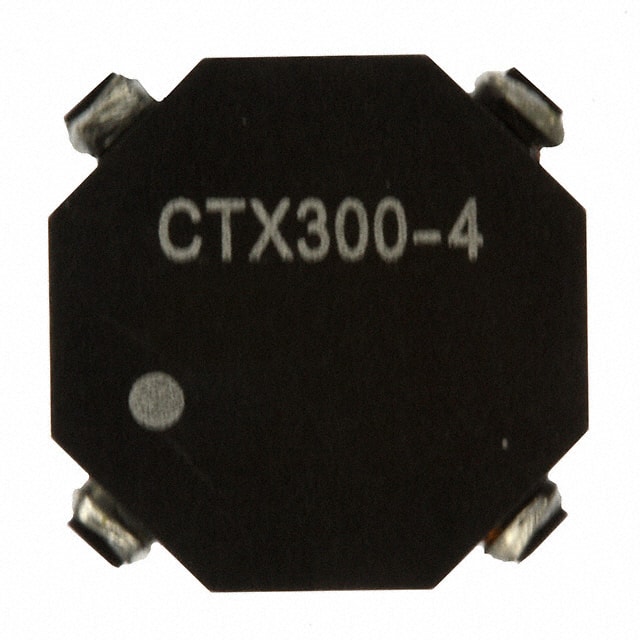

The CTX300-4-R is a surface mount inductor array from Eaton - Electronics Division. It consists of two coils with an inductance of 298.12 µH and a tolerance of ±20%.
The component is rated for a maximum DC current of 310 mA and has a maximum DC resistance of 672 mOhm. It is unshielded, making it suitable for applications where magnetic interference is not a primary concern.
The device is designed for surface mount assembly and comes in a nonstandard package measuring 13.97 mm x 13.97 mm with a height of 6.35 mm. It operates over a temperature range of -40°C to 85°C. Compliance with RoHS, REACH, and MSL Level 1 is indicated but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
| 10+ | $5.45 | $5.45 |
| 600+ | $5.45 | $5.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
298.12 µH.
±20%.
310 mA.
672 mOhm maximum.
No, it is unshielded.
-40°C to 85°C.
Nonstandard surface mount package.
