| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Coils | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

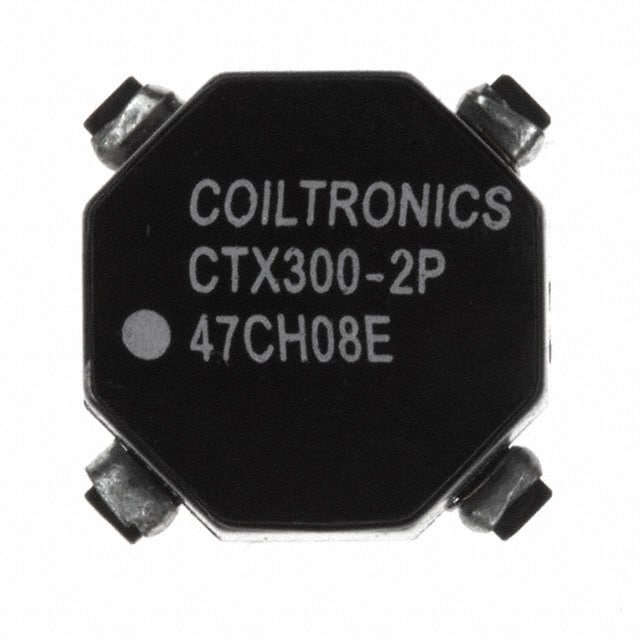

The CTX300-2P-R is a surface mount inductor array manufactured by Eaton - Electronics Division. It contains two unshielded coils with an inductance of 300.42µH per coil and a tolerance of ±20%. The component is rated for a current of 210mA and has a maximum DC resistance of 1.176Ohm.
This inductor array is housed in a nonstandard SMD package with dimensions of 11.43mm length, 11.43mm width, and 5.97mm height. It is designed for surface mount assembly and operates over a temperature range of -40°C to 85°C.
Typical applications include signal filtering and power management in electronic circuits requiring multiple inductors in a compact footprint. The unshielded design allows for magnetic coupling between coils, suitable for transformer or coupled inductor applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.31 | $7.31 |
| 10+ | $6.01 | $6.01 |
| 25+ | $5.52 | $5.52 |
| 50+ | $5.20 | $5.20 |
| 100+ | $4.95 | $4.95 |
| 250+ | $4.87 | $4.87 |
| 500+ | $4.71 | $4.71 |
| 800+ | $4.61 | $4.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CTX300-2P-R has an inductance of 300.42µH per coil with a tolerance of ±20%.
The current rating is 210mA.
The operating temperature range is -40°C to 85°C.
The part is listed as RoHS3 compliant, but this status is unverified.
The package dimensions are 11.43mm length, 11.43mm width, and 5.97mm height, in a nonstandard SMD package.
It has 2 coils and is unshielded.
The maximum DC resistance is 1.176Ohm.
