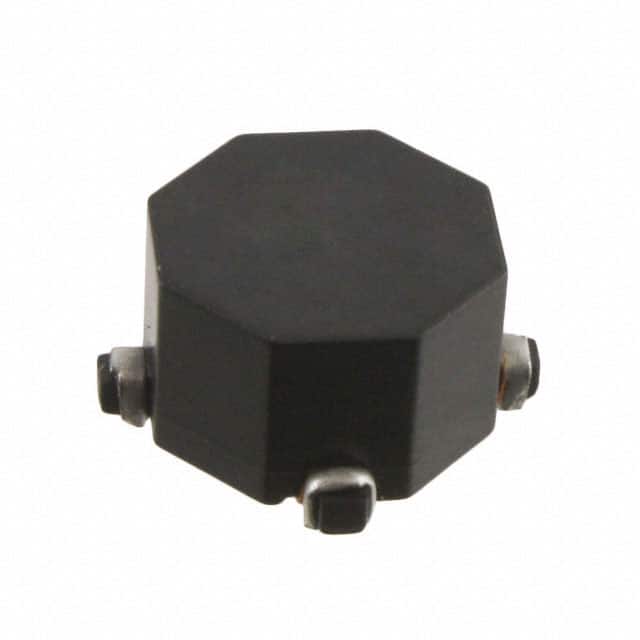

CTX20-2P-R The Coiltronics CTX20-2P-R is an inductor array with two coils, offering 19.58µH inductance in parallel configuration. It is designed for surface mounting.
Mfr Part #:

CTX20-2P-R

Available from 1 distributors
Mfr Name: Coiltronics
Coiltronics
The Coiltronics CTX20-2P-R is an inductor array with two coils, offering 19.58µH inductance in parallel configuration. It is designed for surface mounting.
✓ Total Stock: 210 pcs
$ Price Range: $0.19

CTX20-2P-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
210 pcs
On Request
210 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CTX20-2P-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Height
Mounting Type
Number of Coils
Operating Temperature
Shielding
Tape & Reel
Tolerance
View Similar Products (0)

CTX20-2P-R Description

Short technical summary and product information.

The Coiltronics CTX20-2P-R is a surface-mount inductor array from the Econo-Pac™ series. This component features two coils, providing a nominal inductance of 19.58 µH when connected in parallel and 78.34 µH when connected in series. It has a DC resistance of 97 mOhm in parallel and 387 mOhm in series.



The current rating for this inductor array is 1.5 A in parallel and 750 mA in series. It operates within a temperature range of -40°C to 85°C and has dimensions of 11.43mm x 11.43mm with a height of 5.97mm. The shielding is unshielded, and it comes in tape and reel packaging.



This inductor array is ROHS3 compliant, indicating adherence to environmental standards. Its unshielded construction and compact size make it suitable for various electronic applications where space and performance are critical.

CTX20-2P-R Quick Information

Product Type: Inductor Array
Series: Econo-Pac™
Canonical Name: Coiltronics CTX20-2P-R Inductor Array
Subcategory: Fixed Inductors

CTX20-2P-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CTX20-2P-R Estimated Pricing

Qty Low High
1+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

CTX20-2P-R Features

  • Dual coil with parallel or series connection.
  • 19.58 µH inductance in parallel configuration.
  • 1.5 A current rating in parallel mode.
  • Surface mount unshielded design.
  • Operating temperature range -40°C to 85°C.

CTX20-2P-R Applications

  • Suitable for DC/DC converter circuits
  • Used in surface mount power supplies
  • Ideal for EMI filtering applications
  • Designed for signal transformer arrays
  • Works in low-profile electronics modules

CTX20-2P-R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the CTX20-2P-R?

The inductance is 19.58 µH when connected in parallel and 78.34 µH when connected in series.

What is the current rating of the CTX20-2P-R?

The current rating is 1.5 A when connected in parallel and 750 mA when connected in series.

What is the DC resistance of the CTX20-2P-R?

The DC resistance is 97 mOhm maximum when connected in parallel and 387 mOhm maximum when connected in series.

What is the package type of the CTX20-2P-R?

The part is offered in a Nonstandard Package with surface mount mounting, and is available in Tape & Reel packaging.

Is the CTX20-2P-R shielded?

The CTX20-2P-R is unshielded.

What is the operating temperature range of the CTX20-2P-R?

-40°C to 85°C.

What is the tolerance of the CTX20-2P-R?

±20%.
