| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,300 pcs
|
3300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Coils | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

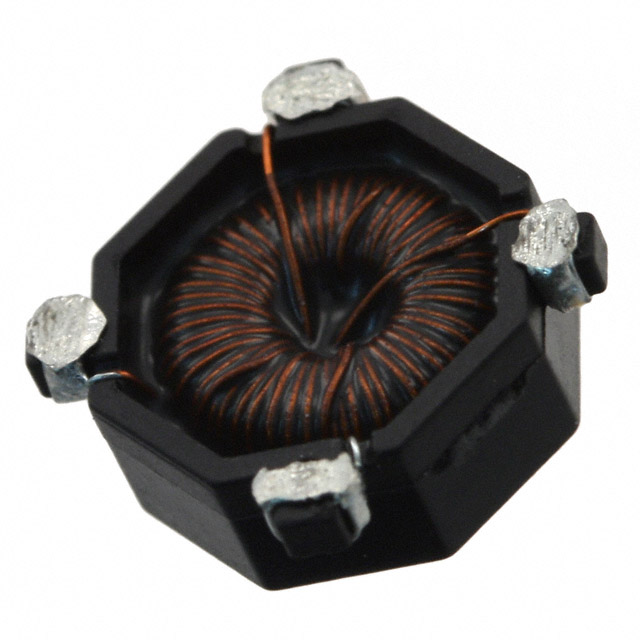

The CTX20-1-R from Eaton - Electronics Division is a dual inductor array with a nominal inductance of 19.6 µH per coil and a ±20% tolerance. This unshielded component is designed for surface mount assembly and comes in a nonstandard package measuring 11.43mm x 11.43mm with a height of 4.19mm.
With a DC current rating of 500 mA and a maximum DC resistance of 146 mOhm, this inductor array is suitable for low-power applications such as signal filtering and transformer coupling. It operates over a temperature range of -40°C to 85°C.
The product is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited floor life), though these compliance claims are unverified. The package is surface mount, and the part is available in tape and reel packaging (details not provided).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.94 | $5.94 |
| 10+ | $5.37 | $5.37 |
| 25+ | $5.15 | $5.15 |
| 50+ | $4.99 | $4.99 |
| 100+ | $4.84 | $4.84 |
| 250+ | $4.70 | $4.70 |
| 500+ | $4.64 | $4.64 |
| 1,100+ | $4.27 | $4.27 |
| 2,200+ | $4.24 | $4.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C.
Nonstandard surface mount case.
Yes, RoHS3 Compliant (unverified).
19.6 µH per coil.
±20%.
500 mA.
2 coils.
