| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Coils | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

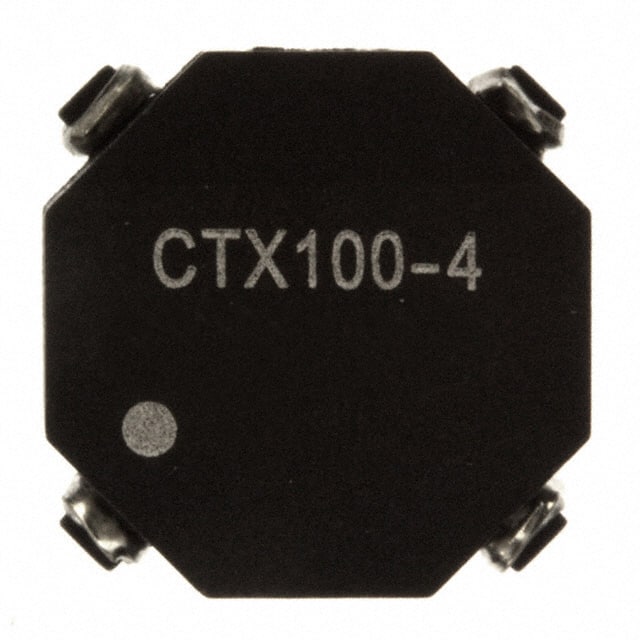

The CTX100-4-R is a two-coil unshielded inductor array manufactured by Eaton - Electronics Division. It features an inductance of 99.23 µH per coil with a tolerance of ±20%. The component is rated for a continuous current of 460 mA and has a maximum DC resistance of 302 mOhm.
Designed for surface mount assembly, the inductor array is housed in a nonstandard package measuring 13.97 mm by 13.97 mm with a height of 6.35 mm. It is unshielded, making it suitable for applications where magnetic coupling between coils is desired or where shielding is not required.
The operating temperature range spans from -40°C to 85°C, allowing use in a variety of environments. Typical applications include power supply filtering, signal coupling, and DC-DC converter circuits where multiple inductors are needed in a compact footprint.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.70 | $6.70 |
| 10+ | $6.06 | $6.06 |
| 25+ | $5.81 | $5.81 |
| 50+ | $5.66 | $5.66 |
| 100+ | $5.63 | $5.63 |
| 250+ | $5.48 | $5.48 |
| 600+ | $5.45 | $5.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C.
Nonstandard surface mount package.
The RoHS status is listed as RoHS3 compliant, but this is unverified and low confidence.
2 coils.
99.23 µH with ±20% tolerance.
460 mA.
302 mOhm maximum.
