| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,221 pcs
|
25221 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Saturation | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Coils | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

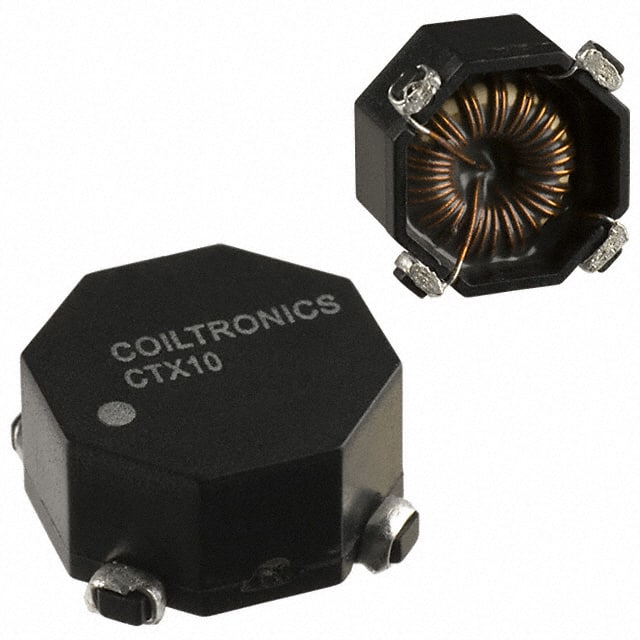

The Eaton CTX10-4A-R is an unshielded 2 coil inductor array with a combined inductance of 10.53 µH and a tolerance of ±25%. It is designed for surface mount applications in a nonstandard package measuring 13.97 mm by 13.97 mm with a height of 6.35 mm.
This inductor array has a current rating of 2.33 A and a saturation current of 4.09 A. The maximum DC resistance is 20 mOhm. It operates over a temperature range of -40°C to 85°C.
The dual coil configuration makes it suitable for use in power supply and signal filtering circuits where a compact magnetic component is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.86 | $5.86 |
| 10+ | $4.82 | $4.82 |
| 25+ | $4.46 | $4.46 |
| 50+ | $4.30 | $4.30 |
| 600+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CTX10-4A-R has an inductance of 10.53 µH.
The current rating is 2.33 A.
The maximum DC resistance is 20 mOhm.
The operating temperature range is -40°C to 85°C.
The package is nonstandard with dimensions 13.97 mm x 13.97 mm x 6.35 mm.
No, the CTX10-4A-R is unshielded.
The CTX10-4A-R has 2 coils.
