| Category | |
| Manufacturer Name | |
| Contact Resistance | |
| Current Rating | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Pitch | |
| Termination Style | |
| Voltage Rating |

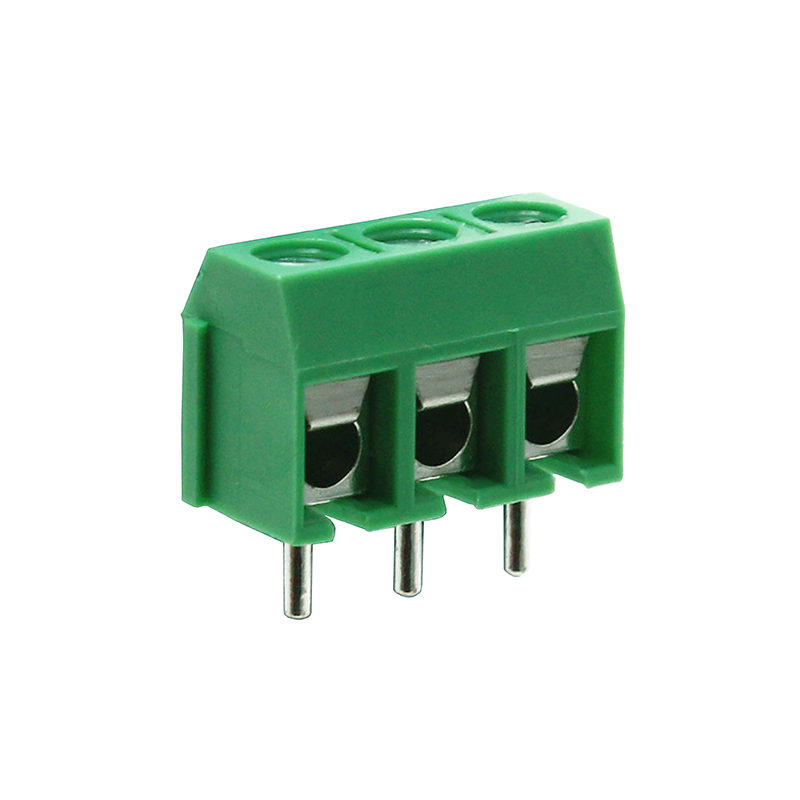

The Camden Boss CTBP5000/3 is a terminal strip designed for electrical connections in various electronic and electrical assemblies. It features three positions with a 5mm pitch, allowing for compact wiring arrangements. The terminal strip is rated for a maximum current of 16A and a voltage of 250V, making it suitable for low to medium power applications. It is constructed with tin-plated brass contacts and phosphor bronze, nickel-plated wire protectors, ensuring reliable electrical contact and corrosion resistance.
The device is mounted on a PCB with a recommended hole size of 1.2mm. It is made from UL94-V0 flame-retardant PA66 material, providing safety in electrical environments. The terminal strip uses steel screws with zinc plating, tightened to a torque of 0.4Nm. It accepts wire sizes from 22 to 14 AWG (0.6 to 1.6mm²). The device is tested for withstand voltage up to AC2000V for 1 minute and has an insulation resistance of 500 MΩ.
Designed for electrical wiring and circuit assembly, this terminal strip is suitable for use in control panels, automation systems, and other electronic devices requiring secure terminal connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5 mm.
It has 3 positions.
The current rating is 16A.
The voltage rating is 250V.
It accepts wire sizes from 22 to 14 AWG (0.6 to 1.6 mm²).
