| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,715 pcs
|
1715 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Current Rating | |
| Housing Color | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Pitch | |
| Termination Style | |
| Voltage Rating |

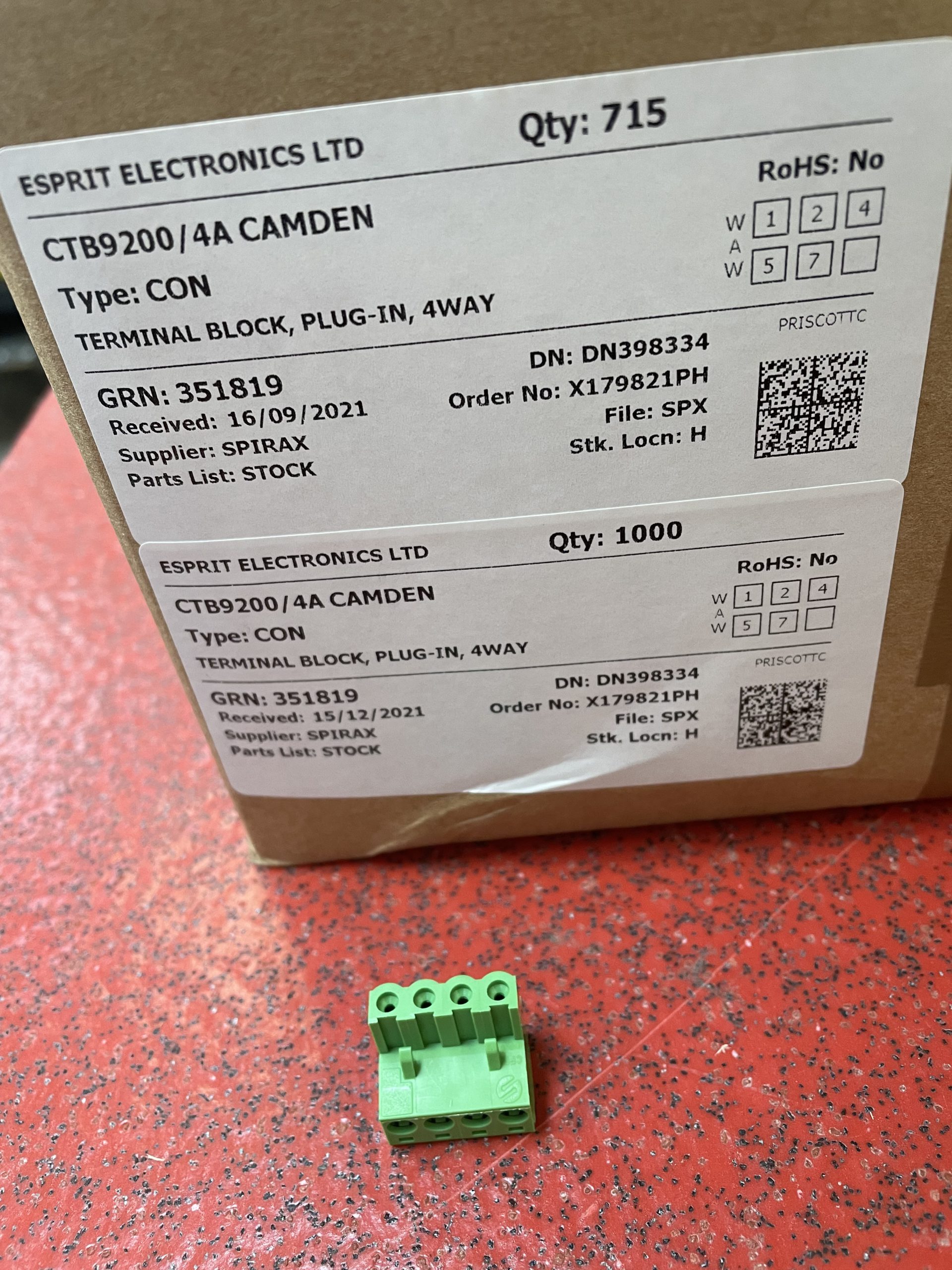

The Camden Boss CTB9200/4A is a free plug type, plug-in female terminal block from the CTB9200/A Series. It features 4 poles and a 5mm pitch, making it suitable for various connection applications.
This terminal block is designed for reliability, with a 12A current rating and a 320V voltage rating. It utilizes a rising clamp termination method and is designed for free hanging mounting. The housing is constructed from green Polyamide 66 and is UL94-V0 flame retardant. The contact material is tinned phosphor bronze.
Suitable for wire sizes up to 2.5mm², the CTB9200/4A incorporates features such as captive screws, guided pin alignment, and anti-solder wicking to ensure secure and efficient connections. Its horizontal body style and polarized mouldings facilitate correct assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CTB9200/4A has 4 positions.
The pitch is 5 mm.
The current rating is 12 A.
The voltage rating is 320 V.
The mounting type is free hanging.
It accepts wire sizes up to 2.5 mm².
The termination style is rising clamp.
