Mfr Part #:

CTB7000/8

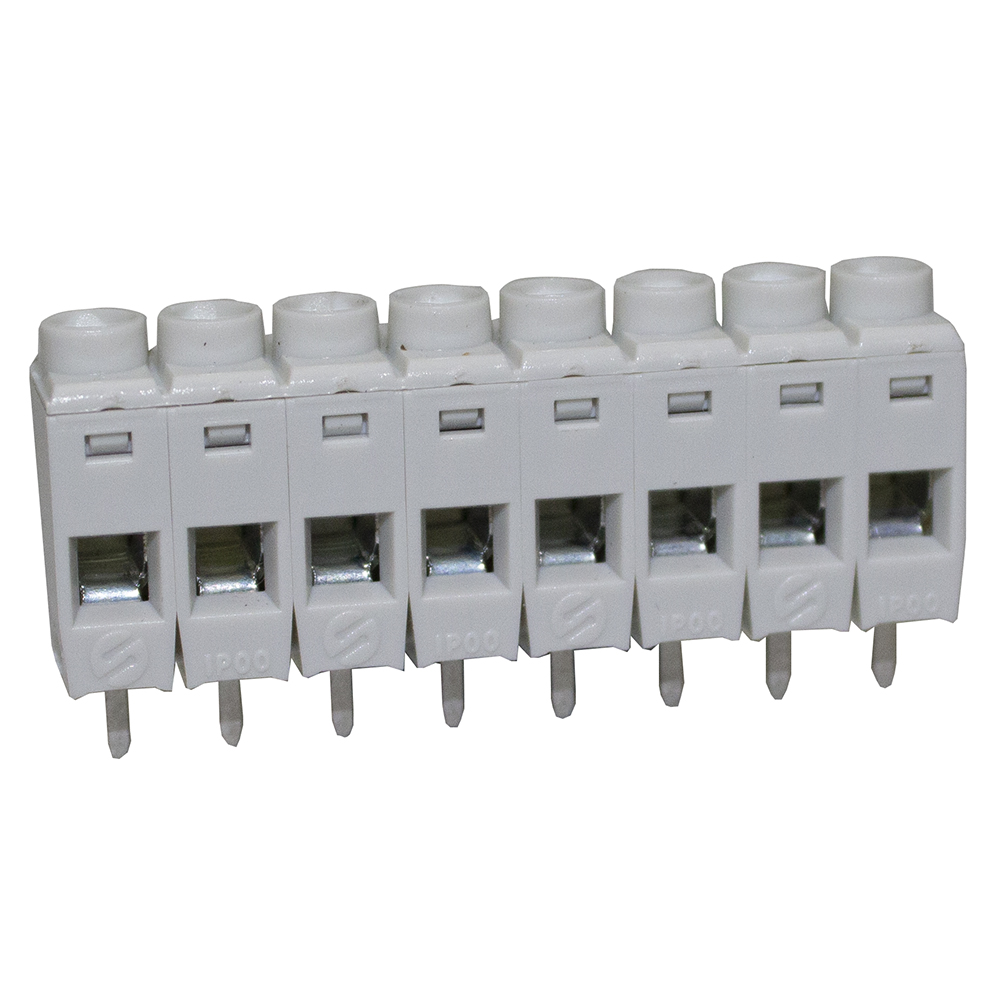

The CamdenBoss CTB7000/8 is an 8-way terminal block featuring a 5mm pitch and rising clamp terminals. It is designed for PCB mounting and accepts wire sizes from 0.2 to 2mm².

✓ Total Stock: 5,000 pcs

$ Price Range: $0.38

CTB7000/8 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

CTB7000/8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Camden Boss
Length	40 mm
Mounting Type	PCB Mount
Number of Poles	8 poles
Pitch	5 mm
Termination Style	Rising Clamp

View Similar Products (0)

CTB7000/8 Description

Short technical summary and product information.

The CamdenBoss CTB7000/8 is a standard profile terminal block with 8 poles and a 5mm pitch, designed for reliable wire-to-board connections. It features professional rising clamp terminals for secure wire termination, accommodating solid or stranded cables from 0.2 to 2mm² (30-12AWG).

The terminal block is moulded in grey UL94-V0 flame retardant PC, ensuring safety and durability. It offers a voltage rating of 22A/450V (VDE/IMQ) and 16A/300V (UL), with a dielectric strength of ≥2.5kV and an impulse withstand voltage of 4kV. The working temperature is rated up to 85°C.

Designed for PCB mounting, it has a recommended PCB hole size of Ø1.3mm. The pin and terminal material is tinned, nickel-plated brass, with a nickel-plated brass rising clamp. The screw is M2.5 steel, zinc-plated, with a recommended torque of 0.5Nm. This terminal block can be easily cut to the required number of poles or supplied pre-cut, and features guided pin alignment and anti-solder wicking.

Key specifications include a 5mm pitch, 8 poles, and a length of 40mm. The CTB7000 series offers a unique 36-pole design and is easily cut to the required size.

CTB7000/8 Quick Information

Product Type: Terminal Block

Series: CTB7000

Canonical Name: Camden Boss CTB7000/8 8-Way Rising Clamp Terminal Block

Subcategory: PCB Mount Terminal Blocks

CTB7000/8 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CTB7000/8 Estimated Pricing

Qty	Low	High
1+	$0.38	$0.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

CTB7000/8 Features

8-way terminal block with 5mm pitch.
Professional rising clamp terminals for secure connections.
Accepts 0.2-2mm² solid and stranded wire.
UL94-V0 flame retardant PC housing.
Rated for 22A at 450V (VDE/IMQ).

CTB7000/8 Applications

Ideal for general purpose PCB wiring.
Suitable for power distribution connections.
Used in industrial control systems.
Applicable for signal routing on boards.

CTB7000/8 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the pitch of the CTB7000/8 terminal block?

The pitch of the CTB7000/8 terminal block is 5mm.

What is the current and voltage rating for the CTB7000/8 terminal block?

The CTB7000/8 terminal block has a rating of 22A/450V (VDE/IMQ) and 16A/300V (UL).

What wire sizes can be used with the CTB7000/8 terminal block?

The CTB7000/8 terminal block accepts solid or stranded cable from 0.2 to 2mm² (30-12AWG).

What is the operating temperature range for this terminal block?

The working temperature for the CTB7000/8 terminal block is up to 85°C.

What type of terminals does the CTB7000/8 use?

The CTB7000/8 terminal block uses professional rising clamp terminals.
