Mfr Part #:

CTB7000/36

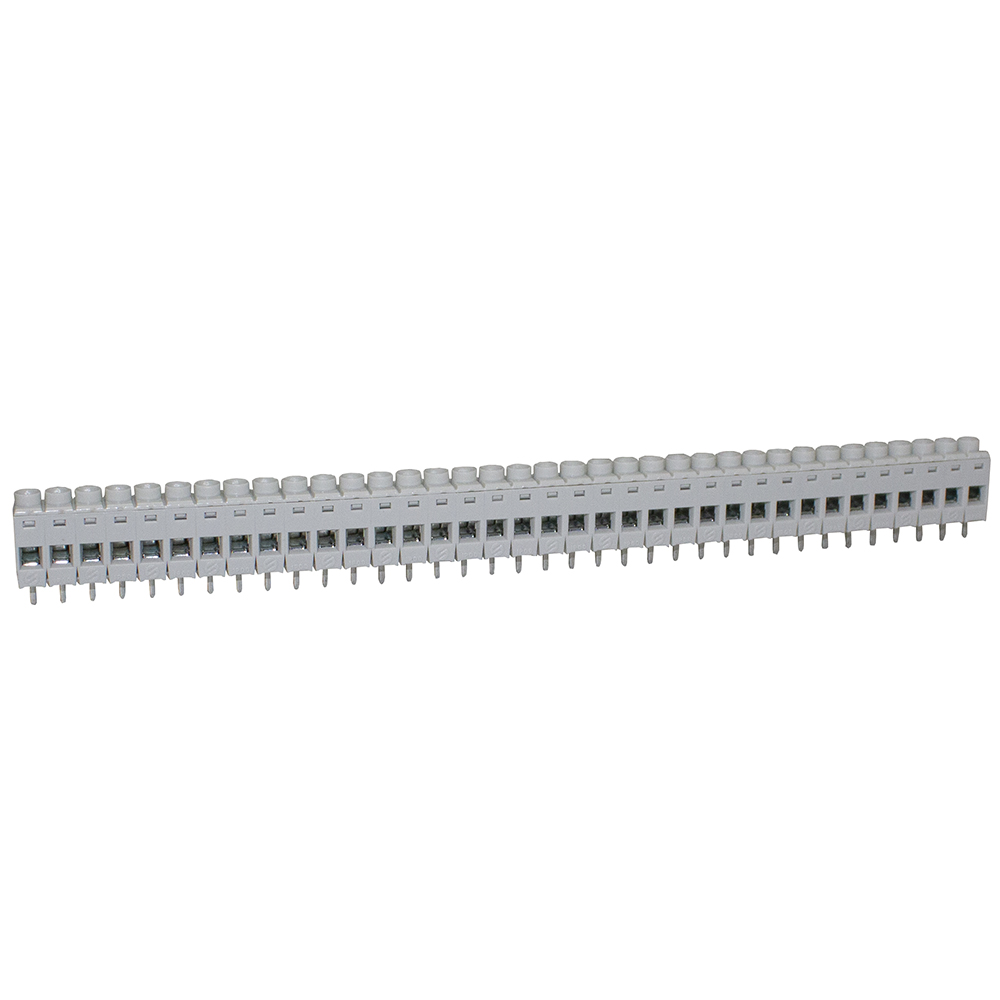

The CAMDEN BOSS CTB7000/36 is a 36-pole terminal block with a 5mm pitch. It features professional rising clamp terminals and is molded in grey UL94-V0 flame retardant PC.

✓ Total Stock: 1 pcs

$ Price Range: $0.38

CTB7000/36 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

CTB7000/36 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Camden Boss
Current Rating	22A
Mounting Type	PCB Mount
Number of Positions	36 poles
Pitch	5 mm
Voltage Rating	250V

View Similar Products (0)

CTB7000/36 Description

Short technical summary and product information.

The CAMDEN BOSS CTB7000/36 is a high-quality terminal block designed for wire-to-board connections. It features a unique 36-pole configuration with a standard profile and professional rising clamp terminals for secure wire termination.

The terminal block accepts solid or stranded cable sizes from 0.2-2mm² (30-12AWG). It is constructed from UL94-V0 flame retardant PC material, ensuring safety and durability in various applications. The specified electrical ratings are 22A/250V, with specific ratings for UL (16A/300V) and VDE/IMQ (22A/450V).

Key mechanical and electrical specifications include a dielectric strength of ≥2.5kV and an impulse withstand voltage of 4kV. The working temperature is rated up to 85°C. The pin and terminal material is tinned, nickel-plated brass, with nickel-plated brass rising clamps. The screw/torque specification is M2.5 steel zinc plated, with a recommended torque of 0.5Nm. The recommended PCB hole size is ø1.3mm.

This terminal block is easily cut to the required number of poles or can be supplied pre-cut. It also features guided pin alignment and anti-solder wicking for reliable assembly and performance.

CTB7000/36 Quick Information

Product Type: Terminal Block

Series: CTB7000

Canonical Name: CAMDEN BOSS CTB7000/36 36 Pole Terminal Block

Subcategory: Terminal Block Adapters

CTB7000/36 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CTB7000/36 Estimated Pricing

Qty	Low	High
1+	$0.38	$0.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

CTB7000/36 Features

36 pole rising clamp terminal block.
5mm pitch for compact PCB layout.
Accepts 0.2-2mm² solid/stranded wire.
UL94-V0 flame retardant PC molding.
Rated for 22A at 250V.

CTB7000/36 Applications

Ideal for wire-to-board connections.
Suitable for industrial control systems.
Used in power distribution modules.
Applicable in signal routing circuits.

CTB7000/36 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the pitch of the CTB7000/36 terminal block?

The pitch of the CTB7000/36 terminal block is 5mm.

How many poles does the CTB7000/36 terminal block have?

The CTB7000/36 terminal block has 36 poles.

What is the current rating for the CTB7000/36 terminal block?

The CTB7000/36 terminal block has a general rating of 22A/250V, a UL rating of 16A/300V, and a VDE/IMQ rating of 22A/450V.

What is the working temperature range for this terminal block?

The working temperature for the CTB7000/36 terminal block is up to 85°C.

What material is the CTB7000/36 terminal block molded from?

The CTB7000/36 terminal block is molded in grey UL94-V0 flame retardant PC.

What wire sizes can be accepted by the CTB7000/36 terminal block?

The CTB7000/36 terminal block accepts solid or stranded cable from 0.2-2mm² (30-12AWG).
