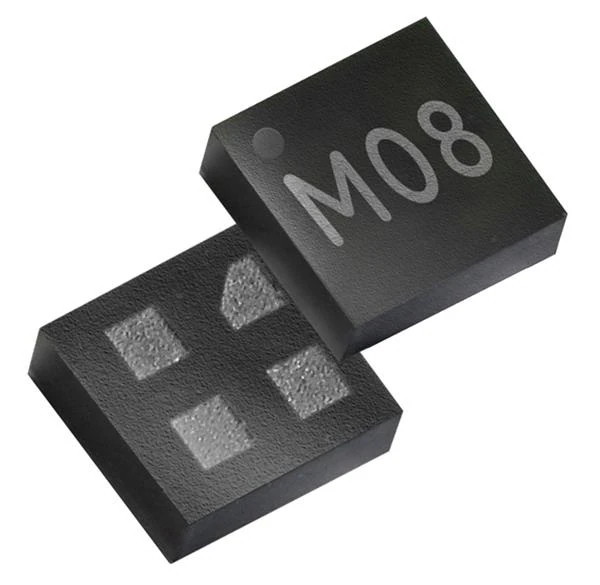

The Allegro MicroSystems CT8132SK-IL4 is an integrated digital omnipolar sensor designed for various sensing applications. It operates within a wide supply voltage range of 1.7V to 5.5V, with a typical operating voltage of 3.3V. The sensor provides an output current of up to 20mA and features a push-pull output type.
With a sensing range of ±0.9mT trip and ±0.5mT release, and a typical magnetic hysteresis of 4 Gs, this omnipolar switch offers precise magnetic field detection. The operating temperature range is -40°C to 125°C, making it suitable for industrial environments. The device is housed in a compact 4-XFLGA surface mount package (1.45x1.45mm) with a height of 0.44mm, facilitating integration into space-constrained designs.
Key electrical characteristics include a typical operating supply current of 145 nA and a maximum supply current of 5µA. The sensor is designed for latch and omnipolar switch functions, providing versatile control capabilities. Its RoHS3 compliant status and MSL 1 rating ensure suitability for a broad range of manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.7V to 5.5V.
The typical supply current is 145 nA.
The operating temperature range is -40°C to 125°C.
The package is a 4-XFLGA (1.45 mm x 1.45 mm).
The trip point is ±0.9 mT and the release point is ±0.5 mT.
The output type is push-pull.
