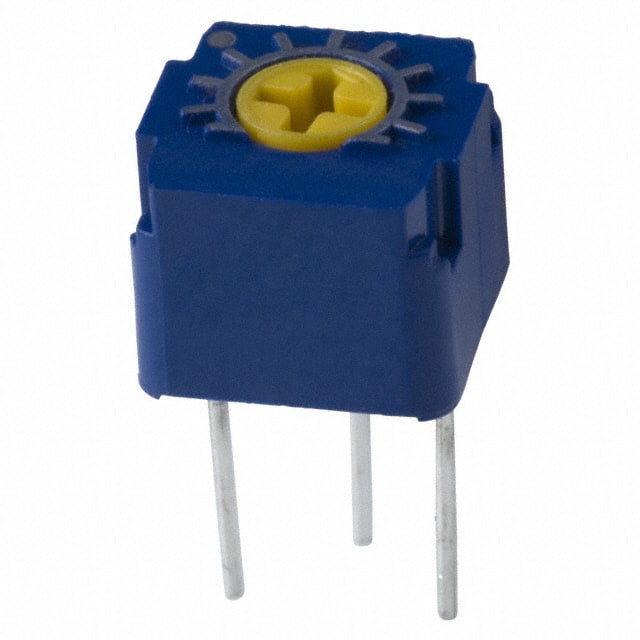

CT-6EP502 The Nidec CT-6EP502 is a single-turn cermet trimmer potentiometer with 5 kΩ resistance and a 0.5W power rating. It features top adjustment and PC pin termination.
Mfr Part #:

CT-6EP502

Available from 1 distributors
Mfr Name: Nidec
Nidec
The Nidec CT-6EP502 is a single-turn cermet trimmer potentiometer with 5 kΩ resistance and a 0.5W power rating. It features top adjustment and PC pin termination.
✓ Total Stock: 15 pcs
$ Price Range: $0.05

CT-6EP502 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CT-6EP502 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Storage Temperature
Tape & Reel
Temperature Coefficient
Termination Style
Tolerance
View Similar Products (0)

CT-6EP502 Description

Short technical summary and product information.

The Nidec CT-6EP502 is a single-turn cermet trimmer potentiometer designed for precise resistance adjustments. It offers a resistance value of 5 kΩ with a tolerance of ±10% and a power rating of 0.5W.



This trimmer features a top adjustment mechanism and PC pin termination, making it suitable for through-hole mounting. The resistive element is made of RuO2 cermet, ensuring reliable performance. The housing is constructed from PBT (Polybutylene terephthalate) and is UL Recognized 94V-0.



The CT-6EP502 is RoHS3 compliant and has a moisture sensitivity level of 1. Its compact size, measuring 0.276" x 0.276" face (7.00mm x 7.00mm), makes it suitable for applications where space is a consideration.



This component is part of the CT-6 series, offering various configurations and a wide variety of resistance values. The "O" ring seal provides washability, and the lead-free termination ensures compliance with environmental standards.

CT-6EP502 Quick Information

Product Type: Trimmer Potentiometer
Series: CT-6
Canonical Name: Nidec CT-6EP502 Single Turn Cermet Trimmer Potentiometer
Subcategory: Trimmer Potentiometer

CT-6EP502 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-free

CT-6EP502 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

CT-6EP502 Features

  • Single turn cermet trimmer potentiometer.
  • 5 kΩ resistance with ±10% tolerance.
  • 0.5W power rating.
  • Top adjustment with PC pin termination.
  • Through hole mounting type.

CT-6EP502 Applications

  • Ideal for circuit calibration adjustments.
  • Suitable for power supply regulation.
  • Used in test and measurement equipment.
  • Applicable in consumer electronics.

CT-6EP502 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the Nidec CT-6EP502 trimmer potentiometer?

The Nidec CT-6EP502 has a resistance value of 5 kΩ.

What is the power rating of the CT-6EP502 trimmer potentiometer?

The power rating for the Nidec CT-6EP502 is 0.5W.

What is the tolerance of the Nidec CT-6EP502 trimmer potentiometer?

The tolerance for the Nidec CT-6EP502 is ±10%.

What type of adjustment does the CT-6EP502 trimmer potentiometer feature?

The CT-6EP502 features a top adjustment.

How is the Nidec CT-6EP502 trimmer potentiometer mounted?

The Nidec CT-6EP502 is a through-hole mount type with PC pin termination.

What is the resistive material used in the Nidec CT-6EP502?

The resistive material used is Cermet.

Is the Nidec CT-6EP502 RoHS compliant?

Yes, the Nidec CT-6EP502 is RoHS3 Compliant.

CT-6EP502 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
3386P-1-502LF
3386P-1-502LF
Bourns
The Bourns 3386P-1-502LF is a 5 kΩ single-turn trimmer potentiometer with a ±10% tolerance and 0.5W power rating. It features a cermet resistive element and top adjustment.
View Part
