| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,881 pcs
|
1881 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging (First Year) | |
| Base Resonator | |
| Current | |
| Duty Cycle | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Output Load | |
| Output Logic | |
| Output Voltage High (Min) | |
| Output Voltage Low (Max) | |
| Package / Case | |
| Packaging Type | |
| Rise & Fall Time | |
| Standard Package Quantity | |
| Start-up Time | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supply Current | |
| Supply Voltage | |
| Supply Voltage Tolerance | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

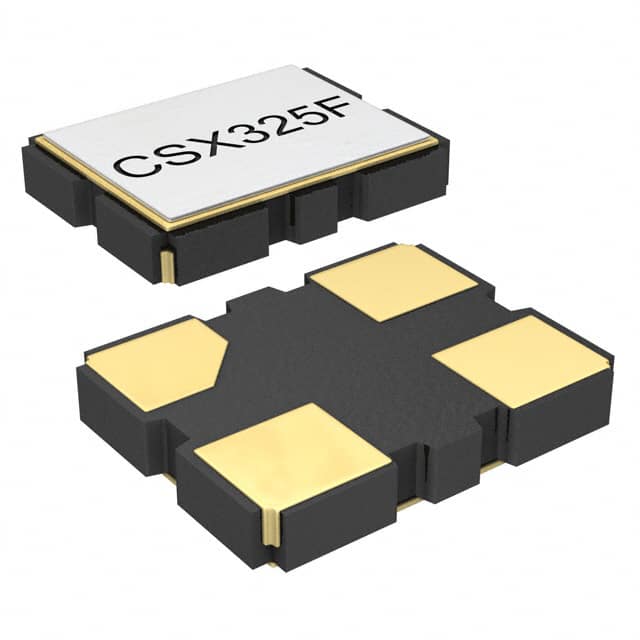

The CSX325FHC27.000M-UT is a 27 MHz XO (standard) crystal oscillator from Citizen Finedevice utilizing a crystal base resonator. It provides a CMOS logic output with a supply voltage of 2.5V (±0.12V tolerance). The oscillator ensures ±100ppm frequency stability over the full operating temperature range of -20°C to 70°C.
Electrical characteristics include a maximum supply current of 5mA, a duty cycle of 50% ±10%, and maximum rise/fall time of 5ns. Output voltage high is 0.9×Vdd minimum, output low is 0.1×Vdd maximum, driving a 15pF load. Start-up time is 2ms maximum, and aging is ±3ppm in the first year. A standby (power down) function is available to disable the output.
Mechanically, the oscillator comes in a compact 4-SMD, no lead package measuring 3.20mm × 2.50mm × 1.00mm. It is designed for surface-mount assembly and is shipped in tape and reel packaging with 2000 pieces per reel. The device is suitable for automatic mounting and reflow soldering.
Typical applications include communication devices, AV equipment, automotive electronics, and measuring instruments, benefiting from its low current consumption and miniature size.
2.5V, with a tolerance of ±0.12V.
4-SMD, No Lead package, dimensions 3.20mm × 2.50mm × 1.00mm.
-20°C to 70°C.
It is listed as RoHS3 Compliant (unverified).
±100ppm.
CMOS.
Yes, it has a Standby (Power Down) function.
