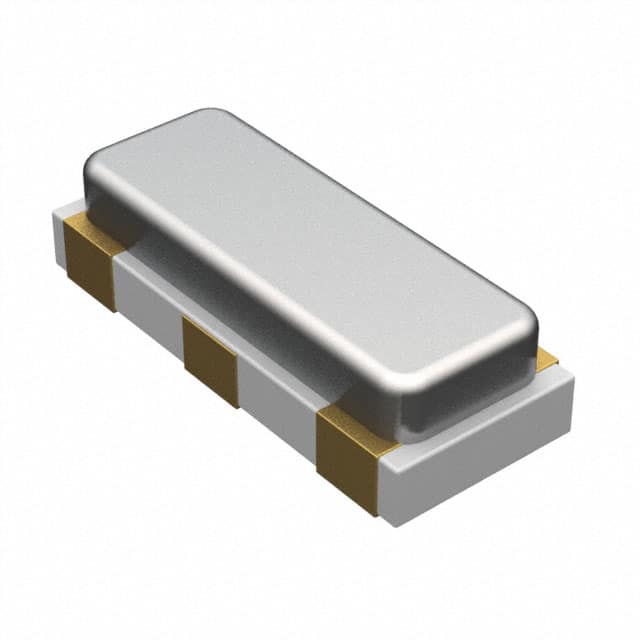

CSTNE8M00G52A000R0 Ceramic resonator from Murata with 8 MHz nominal frequency, ±0.5% tolerance, and 10pF built-in load capacitance. Surface mount package for automotive and industrial clock circuits.
Mfr Part #:

CSTNE8M00G52A000R0

Available from 2 distributors
Mfr Name: Murata
Murata
Ceramic resonator from Murata with 8 MHz nominal frequency, ±0.5% tolerance, and 10pF built-in load capacitance. Surface mount package for automotive and industrial clock circuits.
✓ Total Stock: 8,320 pcs

CSTNE8M00G52A000R0 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
4,160 pcs
On Request
4160 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
4,160 pcs
On Request
4160 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CSTNE8M00G52A000R0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Capacitance
Features
Frequency
Frequency Stability
Frequency Tolerance
Height
Impedance
Insulation Resistance
Length
Mounting Type
Operating Temperature
Operating Temperature Range
Package / Case
SVHC Present
Storage Temperature
Tape & Reel
Type
Width
Withstanding Voltage
View Similar Products (0)

CSTNE8M00G52A000R0 Description

Short technical summary and product information.

The CSTNE8M00G52A000R0 is a piezoelectric ceramic resonator from Murata designed for clock generation circuits in automotive microcontrollers and other applications. It operates at a nominal frequency of 8 MHz with an initial frequency tolerance of ±0.5% and frequency stability of ±0.2% over the full temperature range of -40 to +125°C.



The resonator integrates a built-in load capacitance of 10 pF (reference value at 1 MHz), reducing external component count. Electrical ratings include maximum DC voltage of 6 V, maximum AC voltage of 15 Vp-p, and withstanding voltage of 100 V DC for up to 5 seconds. Insulation resistance is a minimum of 500 MΩ at 10 V DC, and frequency aging is within ±0.10% after 1000 hours at 85°C.



Mechanically, the component measures 3.20 mm × 1.30 mm × 0.70 mm in a 3-SMD, non-standard surface-mount package. It is supplied in tape and reel packaging for automated assembly. The operating temperature range is -40 to +125°C, with storage from -55 to +125°C.



This resonator is suitable for time-base oscillators in automotive electronics, where stability and reliability are critical. The built-in capacitor simplifies design and saves board space.

CSTNE8M00G52A000R0 Quick Information

Product Type: Ceramic Resonator
Canonical Name: Murata CSTNE8M00G52A000R0 Ceramic Resonator, 8 MHz, 10pF Built-in Capacitor, Surface Mount
Subcategory: Resonators

CSTNE8M00G52A000R0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CSTNE8M00G52A000R0 Features

  • 8 MHz nominal frequency ceramic resonator.
  • Built-in 10pF load capacitance for compact design.
  • Wide operating temperature range -40 to 125°C.
  • Surface mount package 3.2mm x 1.3mm x 0.7mm.
  • RoHS compliant design.

CSTNE8M00G52A000R0 Applications

  • Ideal for automotive microcontroller clock circuits.
  • Used in surface mount oscillator modules.
  • Suitable for high temperature industrial applications.
  • Provides stable frequency reference for timing circuits.

CSTNE8M00G52A000R0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

What is the frequency tolerance?

The initial frequency tolerance is ±0.5% maximum.

What is the package / case type?

The package is 3-SMD, Non-Standard, surface mount, with dimensions 3.20 mm x 1.30 mm x 0.70 mm.

Is this component RoHS compliant?

Our records indicate it is RoHS3 compliant, though this has not been independently verified from the datasheet.

What is the built-in load capacitance?

The built-in load capacitance is 10 pF (reference value at 1 MHz, ±20%).

What is the storage temperature range?

The storage temperature range is -55°C to +125°C.

What packaging options are available?

The component is supplied in Tape & Reel packaging. A bulk packaging variant (CSTNE8M00G52A000B0) is also available.
