| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,900 pcs
|
2900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
560 pcs
|
560 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
560 pcs
|
560 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Features | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Tape & Reel | |
| Type | |
| Width |

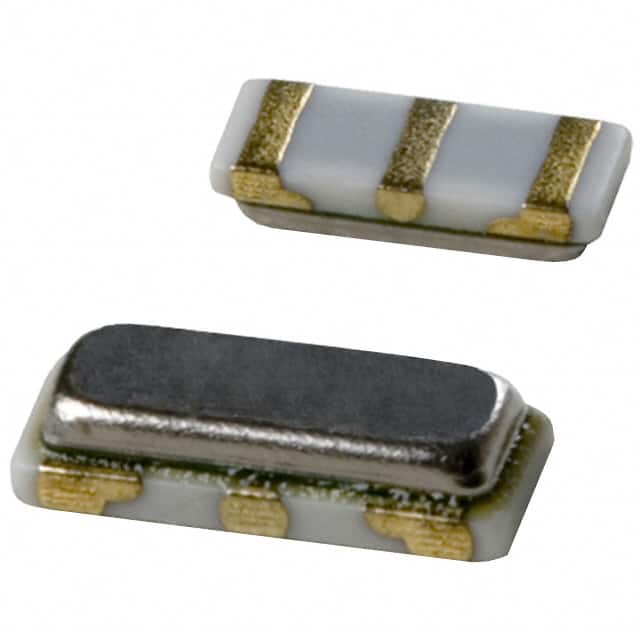

The CSTCE10M0G55-R0 is a Murata CERALOCK ceramic resonator designed for use as a timing reference in microprocessor-based equipment. It operates at a nominal frequency of 10.0000 MHz with a frequency tolerance of ±0.5% and frequency stability of ±0.2%. A built-in 33 pF load capacitor simplifies external circuit design by reducing the need for additional components.
This resonator comes in a compact 3-SMD non-standard surface mount package measuring 3.20 mm x 1.30 mm x 0.79 mm. Its operating temperature range is -20°C to +80°C, making it suitable for consumer and industrial applications. The surface mount design supports automated assembly processes.
Typical applications include microcontrollers, clock generation circuits, and other digital systems requiring a stable ceramic-based frequency reference.
-20°C to +80°C.
3-SMD, Non-Standard, surface mount.
RoHS3 Compliant (status unverified).
33 pF.
±0.2%.
