| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

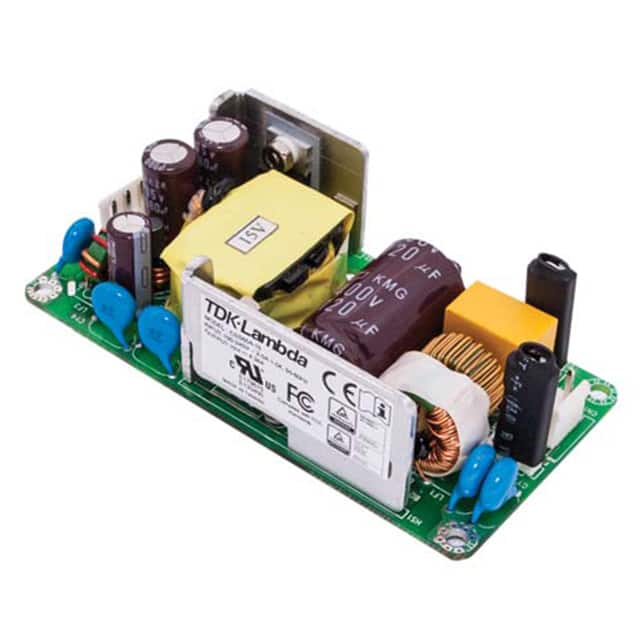

This TDK Corporation CSS65A-28 is an AC/DC converter with a power rating of 65W and an output voltage of 28V. It operates with an efficiency of 89% and provides 2.33A of current. The converter is designed as an Open Frame type and utilizes Chassis Mount for installation.
Key features include Universal Input and Remote Sense capabilities, making it suitable for ITE (Commercial) and Medical applications. The operating temperature range is from 0°C to 70°C with derating. It has a single output and an isolation voltage of 4 kV. The dimensions are 101.6mm in length, 50.8mm in width, and 30.5mm in height.
Compliance includes CE approval. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is REACH Unaffected. This product is designed for reliable power conversion in various industrial and medical environments.
28V.
65W.
89%.
0°C to 70°C with derating.
Remote sense and universal input.
ITE (Commercial) and Medical.
Chassis mount.
