| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,000 pcs
|
31000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| High Temperature Performance | |
| Length | |
| Low thermal EMF | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

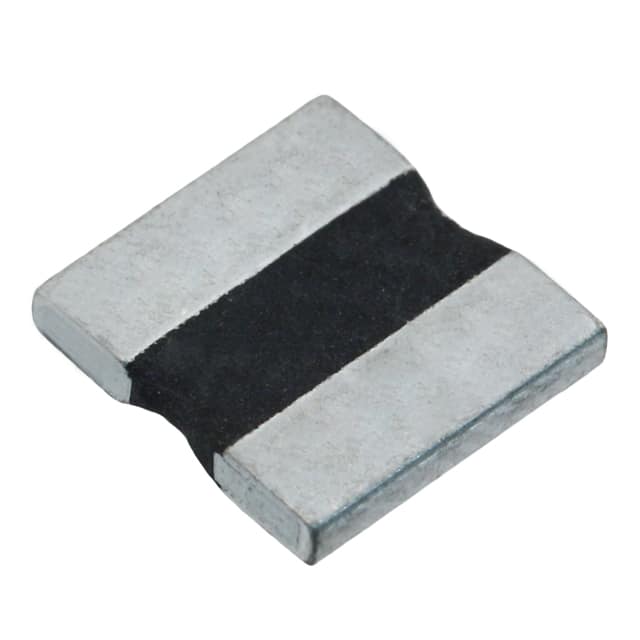

The Stackpole Electronics Inc. CSS2725FT1L00 is an ultra-precision metal alloy current sensing chip resistor. It features a low resistance value of 0.001 Ohm with a tight tolerance of ±1% and a power rating of 4W. The operating temperature range is from -55°C to 225°C, with high temperature performance up to 225°C.
This component is AEC-Q200 compliant, making it suitable for automotive applications. It also boasts low thermal EMF, typically less than 1µV/C. The resistor is constructed with a metal element and comes in a 2725 package size.
Designed for surface mounting, the CSS2725FT1L00 is RoHS compliant, lead-free, and halogen-free. Its compact dimensions and robust construction make it ideal for applications requiring accurate current measurement in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 0.001 Ohm.
The tolerance is ±1%.
The power rating is 4W.
The operating temperature range is -55°C to 225°C.
The temperature coefficient is ±50ppm/°C.
The dimensions are 6.81mm L x 6.45mm W x 1.34mm H.
Yes, the CSS2725FT1L00 is AEC-Q200 compliant.
