| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,970 pcs
|
4970 pcs | On Request | 1 | On Request | On Request | 1219 | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

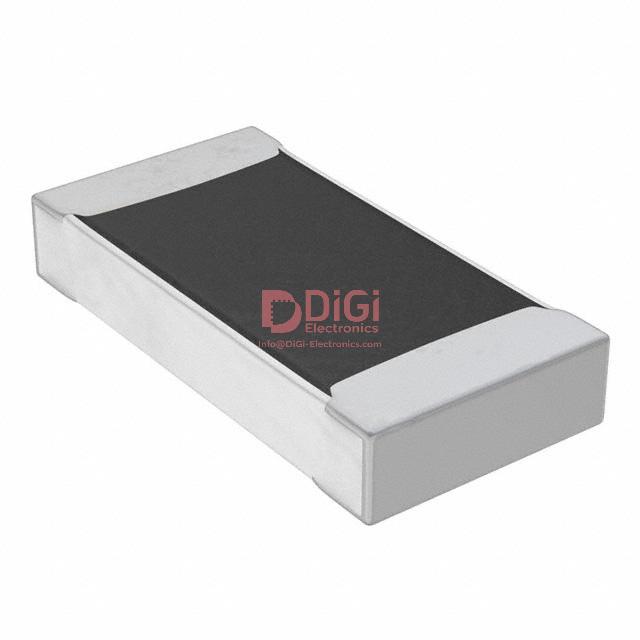

The Stackpole Electronics Inc. CSR1206FKR200 is a surface-mount chip resistor from the CSR series, specifically designed for current sensing applications. This component features a thick film composition and is housed in a standard 1206 (3216 Metric) package.
Key electrical specifications include a resistance value of 200 mΩ with a tight tolerance of ±1%. It is rated for 0.5W of power and has a temperature coefficient of ±100ppm/°C. The operating temperature range is from -55°C to 155°C.
Mechanically, the resistor measures 3.05mm in length and 1.55mm in width, with a height of 0.65mm. It has two terminations. The CSR1206FKR200 is RoHS compliant, lead-free, and halogen-free, making it suitable for various environmental requirements.
This resistor is ideal for applications requiring accurate current monitoring and control. Its robust construction and reliable performance make it a suitable choice for demanding electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 200 mΩ.
The tolerance is ±1%.
The power rating is 0.5W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The CSR1206FKR200 is available in the 1206 (3216 Metric) package size.
Key features include its thick film composition for current sensing, 200 mΩ resistance with ±1% tolerance, 0.5W power rating, and a wide operating temperature range.
