| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
62 pcs
|
62 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Width |

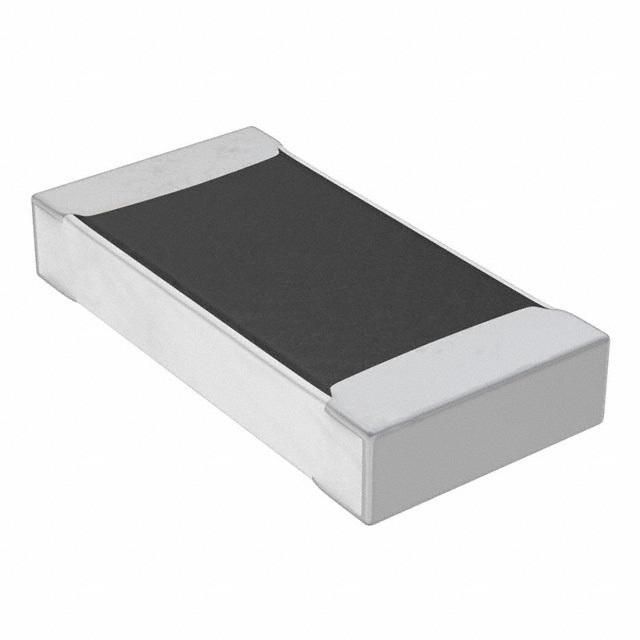

The Stackpole CSR1206FK20L0 is a thick film chip resistor designed for current sensing applications. It features a resistance value of 0.02 Ohms with a tight tolerance of ±1% and a power rating of 0.5W (1/2W). The operating temperature range is -55°C to 155°C, with a temperature coefficient of ±100ppm/°C.
This resistor is housed in a 1206 (3216 Metric) surface mount package with two terminations. Its dimensions are 3.05mm in length and 1.55mm in width, with a height of 0.65mm. The thick film technology ensures reliable performance for current sensing needs.
Compliance includes RoHS3, REACH Unaffected, Lead Free, and Halogen Free. The Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 0.02 Ohms.
The tolerance is ±1%.
The power rating is 0.5W (1/2W).
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 155°C.
The resistor is available in the 1206 (3216 Metric) package size.
The CSR1206FK20L0 resistor is RoHS3 Compliant.
