| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
7,439 pcs
|
7439 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,238 pcs
|
3238 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,535 pcs
|
1535 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
1,513 pcs
|
1513 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
718 pcs
|
718 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage Supply | |
| Watchdog Timer |
The Qualcomm CSR1010A05-IQQM-R is a single-mode Bluetooth low energy radio with an integrated microprocessor, designed for IoT applications. This RF Transceiver IC operates in the 2.4GHz frequency band and supports Bluetooth v4.0 protocol.
Key electrical specifications include a maximum data rate of 3.69Mbaud, an output power of 9dBm, and a sensitivity of -93dBm. It offers 64kB of RAM and 64kB of ROM for memory. The device supports various serial interfaces including I²C, SPI, and UART, and provides 15 GPIO pins. It operates within a supply voltage range of 1.2V to 3.6V, with a receiving current of 20mA and a transmitting current of 18mA.

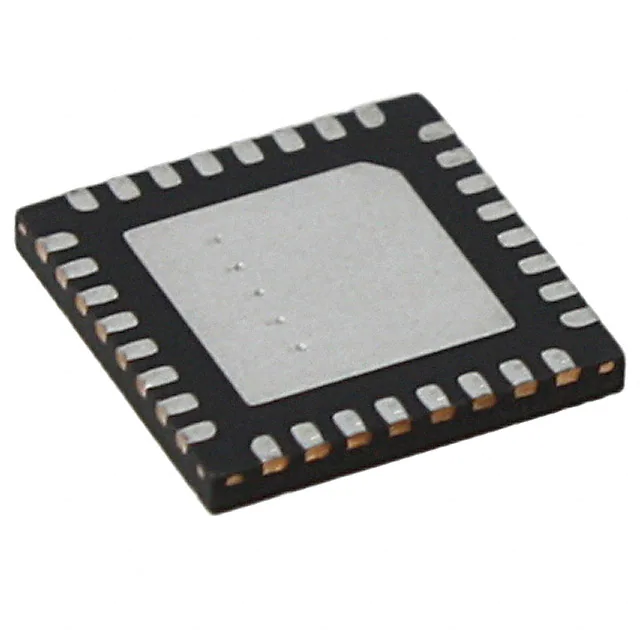

Designed for low power consumption and cost-effectiveness, this IC is optimized for IoT solutions requiring ultra-low power connectivity and basic data transfer. It features wake-up interrupt, watchdog timer, and time-stamping hardware. The CSR1010A05-IQQM-R is housed in a 32-UFQFN Exposed Pad package, suitable for surface mounting.
This component is designed to run directly from a 3V coin cell and can connect directly to a PCB antenna, minimizing external components for easy development and low-cost designs. It enables a new class of Bluetooth applications for the Internet of Things (IoT), facilitating simple data set transfers between compact devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $710.26 | $710.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.2V to 3.6V.
The CSR1010A05-IQQM-R is available in a 32-UFQFN Exposed Pad package.
The operating temperature range is -30°C to 85°C.
