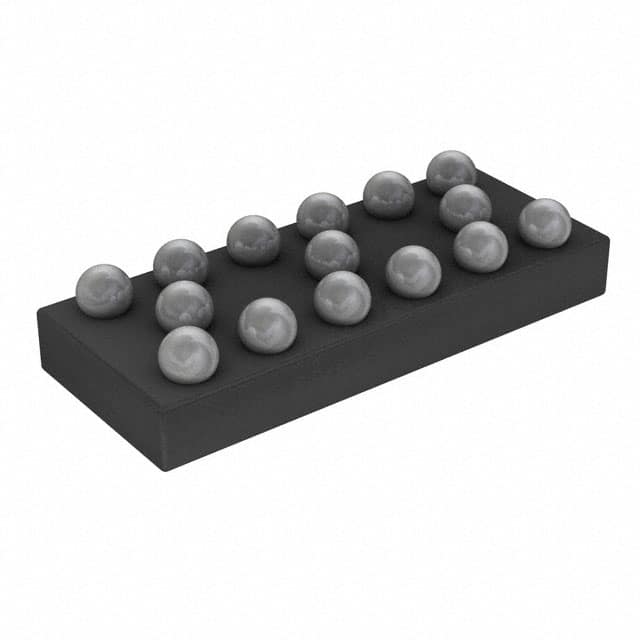

CSPEMI306AG The CSPEMI306AG is a 6-channel low pass EMI filter array from On Semiconductor. It features 100 Ohm resistance, 30pF capacitance, and provides ESD protection.
Mfr Part #:

CSPEMI306AG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The CSPEMI306AG is a 6-channel low pass EMI filter array from On Semiconductor. It features 100 Ohm resistance, 30pF capacitance, and provides ESD protection.
✓ Total Stock: 3,500 pcs
$ Price Range: $0.31

CSPEMI306AG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CSPEMI306AG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Capacitance
Center
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Number of Pins
Operating Temperature
Resistance
Storage Temperature
Tape & Reel
Technology
Termination Style
Type
Values
Width
View Similar Products (0)

CSPEMI306AG Description

Short technical summary and product information.

The CSPEMI306AG is a six-channel low pass filter array designed to reduce EMI/RFI emissions while providing ESD protection. It integrates a pi-style filter (C-R-C) for each channel, offering greater than 30 dB attenuation in the 800 MHz to 2.7 GHz range. The filters support bidirectional filtering, controlling EMI both to and from a data port connector. The device provides ESD protection of ±15 kV per the IEC 61000-4-2 standard. It is well suited for portable electronics such as cellular telephones, PDAs, and notebook computers due to its small package footprint and low weight. The CSPEMI306AG is available in a 15-UFBGA, WLCSP package with solder bump termination. It operates over a temperature range of -40°C to 85°C. The device is RoHS compliant and lead-free.

CSPEMI306AG Quick Information

Product Type: EMI/RFI Low Pass Filter Array
Series: CSPEMI306A
Canonical Name: CSPEMI306AG 6-Channel EMI Filter Array with ESD Protection
Subcategory: RC Networks

CSPEMI306AG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

CSPEMI306AG Estimated Pricing

Qty Low High
956+ $0.31 $0.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

CSPEMI306AG Features

  • Six channels of EMI filtering for data ports.
  • Pi-style RC filter network with 100 Ohm and 30pF.
  • Greater than 30 dB attenuation from 800 MHz to 2.7 GHz.
  • ±15 kV ESD protection per IEC 61000-4-2.
  • Available in space-saving WLCSP package.

CSPEMI306AG Applications

  • Used for EMI filtering on data lines in mobile devices.
  • Suitable for cellular telephones, PDAs, and notebook computers.
  • Provides ESD protection for sensitive electronic components.

CSPEMI306AG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the CSPEMI306AG?

-40°C to 85°C.

Is the CSPEMI306AG RoHS compliant?

Yes, it is RoHS compliant and lead-free.

What package does the CSPEMI306AG come in?

15-UFBGA, WLCSP (Wafer Level Chip Scale Package).

What is the attenuation of the CSPEMI306AG?

Minimum 30 dB attenuation from 800 MHz to 2.7 GHz.

Does the CSPEMI306AG provide ESD protection?

Yes, it provides ±15 kV ESD protection per IEC 61000-4-2.

What is the cutoff frequency of the CSPEMI306AG?

58 MHz.

How many channels does the CSPEMI306AG have?

6 channels.
