| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,319 pcs
|
1319 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| For Measuring | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Polarization | |
| Response Time | |
| Sensor Type | |
| Tape & Reel | |
| Voltage |

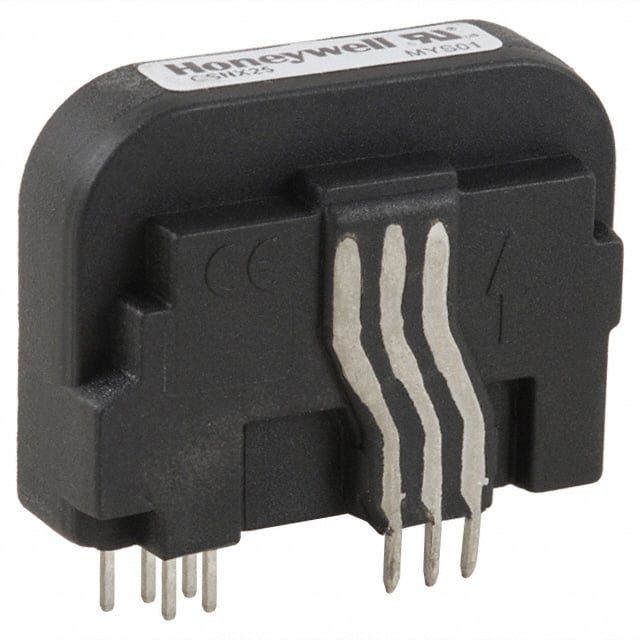

The Honeywell CSNX25 is a closed-loop current sensor utilizing magnetoresistive technology for accurate AC/DC current measurements. It is rated for a current of 56A and operates within a temperature range of -40°C to 85°C.
This sensor features a supply voltage range of 4.75V to 5.25V and provides a ratiometric current output. With an accuracy of ±0.24% and a rapid response time of 0.2µs, it is suitable for applications requiring precise current monitoring.
The CSNX25 is designed for through-hole mounting and comes in a module package. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
Potential applications include variable speed drives, overcurrent protection, ground fault detectors, current feedback control systems, robotics, UPS and telecommunication power supplies, welding power supplies, battery management systems, and wattmeters.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Honeywell CSNX25 sensor has a current rating of 56A.
The CSNX25 sensor operates in a temperature range of -40°C to 85°C.
The CSNX25 current sensor requires a supply voltage between 4.75 VDC and 5.25 VDC.
The accuracy of the CSNX25 current sensor is ±0.24%.
The CSNX25 uses closed-loop magnetoresistive sensor technology.
The CSNX25 current sensor is designed for through-hole mounting.
