| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

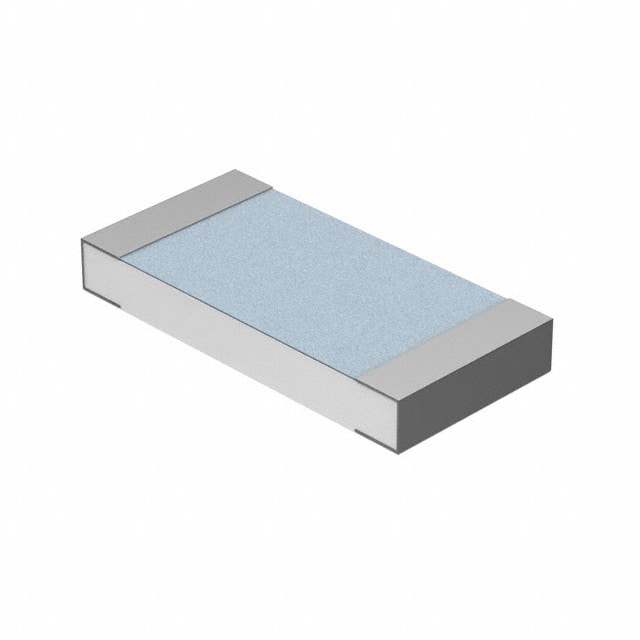

The Stackpole Electronics CSNL2010FT10L0 is a high-power current sensing chip resistor designed for surface mount applications. It is constructed with a metal element and offers a resistance value of 10 mΩ with a tight tolerance of ±1%.
This resistor operates within a temperature range of -55°C to 170°C and has a temperature coefficient of ±50ppm/°C. The power rating is 1.5W. The component comes in a 2010 package size, measuring 5.08mm in length, 2.54mm in width, and 1.04mm in height.
Key features include its current sensing capability and moisture resistance. The device is RoHS3 compliant and lead-free. It is suitable for applications requiring precise current monitoring in a compact surface mount form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the CSNL2010FT10L0 resistor is 10 mΩ.
The tolerance of the CSNL2010FT10L0 resistor is ±1%.
The power rating of the CSNL2010FT10L0 resistor is 1.5W.
The temperature coefficient of the CSNL2010FT10L0 resistor is ±50ppm/°C.
The operating temperature range for the CSNL2010FT10L0 resistor is -55°C to 170°C.
The CSNL2010FT10L0 resistor comes in a 2010 package.
The CSNL2010FT10L0 resistor measures 5.08mm in length, 2.54mm in width, and 1.04mm in height.
