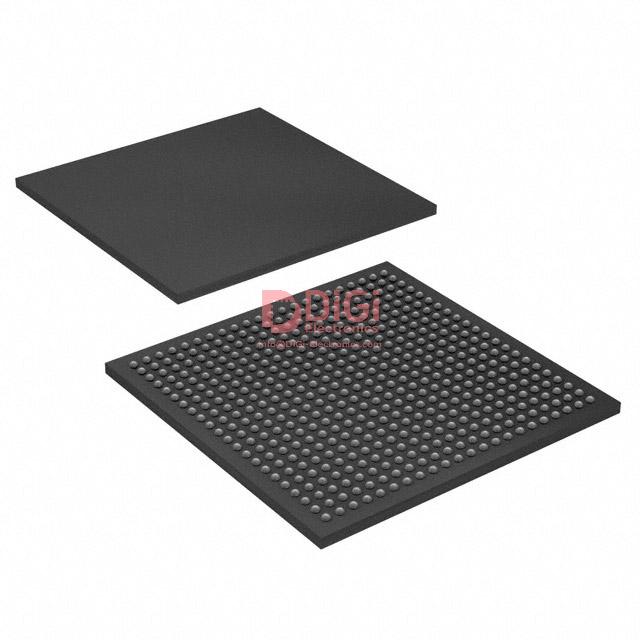

CSG484 The Xilinx XC6SLX100L1CSG484I is a Spartan-6 LX series Field Programmable Gate Array (FPGA) IC. It features 101261 logic elements and 338 I/O pins.
Mfr Part #:

CSG484

Available from 1 distributors
Mfr Name: Xilinx
Xilinx
The Xilinx XC6SLX100L1CSG484I is a Spartan-6 LX series Field Programmable Gate Array (FPGA) IC. It features 101261 logic elements and 338 I/O pins.
✓ Total Stock: 1,039 pcs
$ Price Range: $0.99

CSG484 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
1,039 pcs
On Request
1039 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CSG484 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of I/O
Operating Temperature
Supplier Device Package
Voltage Supply
View Similar Products (0)

CSG484 Description

Short technical summary and product information.

The Xilinx XC6SLX100L1CSG484I is an FPGA IC from the Spartan-6 LX series. This device offers a substantial 101261 logic elements and 7911 LABs/CLBs, coupled with 4939776 total RAM bits, making it suitable for complex digital logic designs.



It provides 338 I/O pins and operates within a supply voltage range of 1.14V to 1.26V. The operating temperature range is -40°C to 100°C (TJ).



This component is designed for surface mounting and comes in a 484-FBGA, CSPBGA package. The supplier device package is specified as 484-CSPBGA (19x19).



Key specifications include 101261 logic elements, 338 I/O, and 4939776 RAM bits. The operating temperature is -40°C to 100°C (TJ), and the supply voltage is 1.14V to 1.26V.

CSG484 Quick Information

Product Type: FPGA IC
Series: Spartan-6 LX
Canonical Name: Xilinx XC6SLX100L1CSG484I FPGA IC
Subcategory: Field Programmable Gate Array

CSG484 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CSG484 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

CSG484 Features

  • 101261 logic elements and 7911 CLBs.
  • 4939776 total RAM bits available.
  • 338 I/O pins for connectivity.
  • Operates at 1.14V to 1.26V supply voltage.
  • Surface mountable in 484-FBGA, CSPBGA package.

CSG484 Applications

  • Suitable for complex digital logic designs.
  • Ideal for embedded system applications.
  • Used in high-performance computing.
  • Applicable in signal processing tasks.

CSG484 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of logic elements in the Xilinx XC6SLX100L1CSG484I?

The Xilinx XC6SLX100L1CSG484I has 101261 logic elements.

How many I/O pins does the Xilinx XC6SLX100L1CSG484I have?

The Xilinx XC6SLX100L1CSG484I has 338 I/O pins.

What is the total RAM bit count for the Xilinx XC6SLX100L1CSG484I?

The Xilinx XC6SLX100L1CSG484I has 4939776 total RAM bits.

What is the operating voltage range for the Xilinx XC6SLX100L1CSG484I?

The operating voltage range for the Xilinx XC6SLX100L1CSG484I is 1.14V to 1.26V.

What is the operating temperature range of the Xilinx XC6SLX100L1CSG484I?

The operating temperature range of the Xilinx XC6SLX100L1CSG484I is -40°C to 100°C (TJ).

What package type is the Xilinx XC6SLX100L1CSG484I supplied in?

The Xilinx XC6SLX100L1CSG484I is supplied in a 484-FBGA, CSPBGA package.

What is the mounting type for the Xilinx XC6SLX100L1CSG484I?

The Xilinx XC6SLX100L1CSG484I is a surface mount device.
