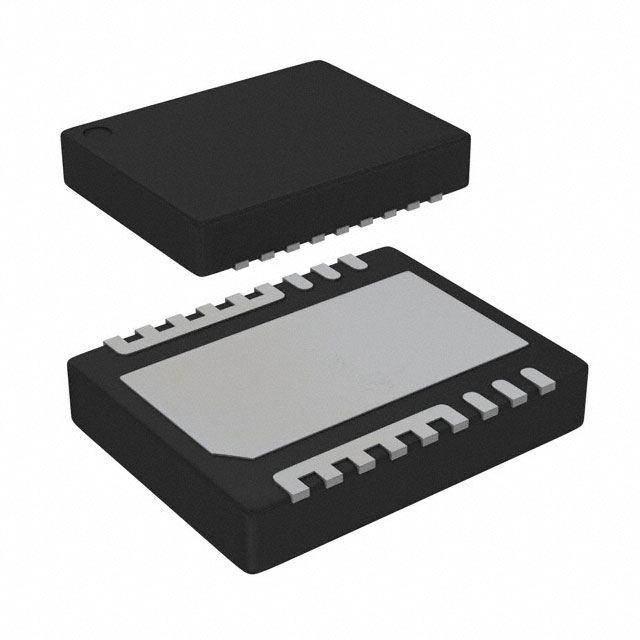

CSD97395Q4MT The Texas Instruments CSD97395Q4MT is a highly optimized NexFET Power Stage designed for high-power, high-density synchronous buck converters. It integrates a driver IC and NexFET technology for efficient power stage switching.
Mfr Part #:

CSD97395Q4MT

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CSD97395Q4MT is a highly optimized NexFET Power Stage designed for high-power, high-density synchronous buck converters. It integrates a driver IC and NexFET technology for efficient power stage switching.
✓ Total Stock: 288 pcs
$ Price Range: $1.08

CSD97395Q4MT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request 21+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
38 pcs
On Request
38 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CSD97395Q4MT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Fault Protection
Features
Halogen Free
Input Voltage
Interface
Load Type
Mounting Type
Operating Temperature
Output Configuration
SVHC Present
Supplier Device Package
Technology
Voltage
View Similar Products (0)

CSD97395Q4MT Description

Short technical summary and product information.

The CSD97395Q4MT from Texas Instruments is a NexFET Power Stage engineered for high-power, high-density synchronous buck converter applications. This integrated solution combines a driver IC with NexFET technology to perform the power stage switching function.



Key electrical specifications include a drain-source voltage up to 30V, a maximum rated continuous current of 25A (60A peak), and the capability for high-frequency operation up to 2MHz. The device supports input voltages ranging from 4.5V to 24V. It offers ultra-low quiescent current modes, reducing consumption to 130µA with the PWM input in tri-state and down to 8µA when SKIP# is held in tri-state.



The CSD97395Q4MT features an ultra-low inductance package and a system-optimized PCB footprint, measuring 3.5mm x 4.5mm. It operates within a temperature range of -40°C to 150°C. The driver IC includes a selectable diode emulation function for improved light load efficiency and supports ULQ mode for connected standby. Additional features include shoot-through protection and a bootstrap diode.



This power stage is suitable for applications requiring efficient power conversion in compact designs. Its robust features and high performance make it a strong choice for demanding power management solutions.

CSD97395Q4MT Quick Information

Product Type: Power Stage
Series: CSD97395Q4M
Canonical Name: CSD97395Q4MT High Frequency Synchronous Buck NexFET Power Stage
Subcategory: Power Stage

CSD97395Q4MT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

CSD97395Q4MT Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

CSD97395Q4MT Features

  • High frequency synchronous buck NexFET power stage.
  • 25A max rated continuous current.
  • 60A peak current capability.
  • Ultra-low inductance package.
  • Operates from -40°C to 150°C.

CSD97395Q4MT Applications

  • Designed for synchronous buck converters.
  • Suitable for high-power density applications.
  • Enables efficient light load operation.
  • Supports connected standby modes.

CSD97395Q4MT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the CSD97395Q4MT?

The operating temperature range is -40°C to 150°C.

What is the maximum continuous drain current for the CSD97395Q4MT?

The maximum rated continuous current is 25A.

What is the peak current capability of the CSD97395Q4MT?

The peak current capability is 60A.

What is the maximum operating frequency for this power stage?

The device supports high frequency operation up to 2 MHz.

What is the package type for the CSD97395Q4MT?

The package is an 8-VSON (3.5x4.5) with a surface mount type.

Is the CSD97395Q4MT RoHS compliant?

Yes, it is RoHS3 Compliant.
