| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
7,904 pcs
|
7904 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,765 pcs
|
4765 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,738 pcs
|
1738 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
964 pcs
|
964 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Fault Protection | |
| Features | |
| Halogen Free | |
| Interface | |
| Lead Style | |
| Load Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Technology | |
| Voltage |

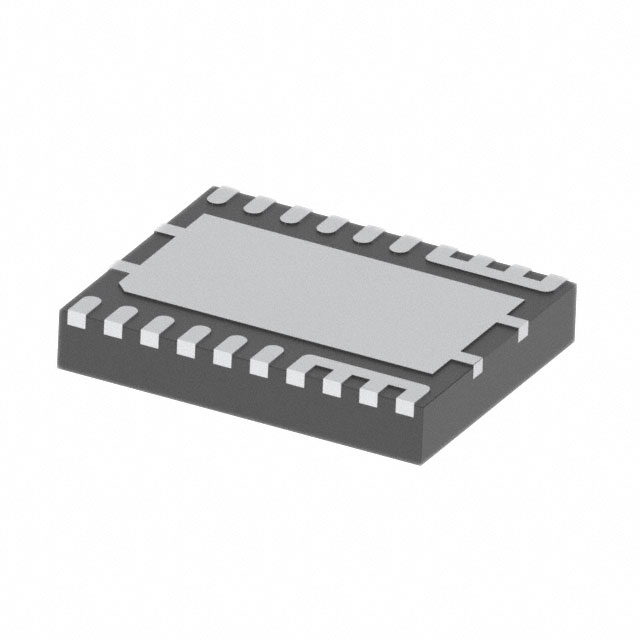

The CSD95492QVM from Texas Instruments is a highly optimized NexFET™ power stage designed for synchronous buck converters requiring high power density and efficiency. This device integrates the driver IC and power MOSFETs, enabling high-current, high-efficiency, and high-speed switching capabilities within a compact 4mm x 5mm VSON package.
Key electrical specifications include a 20A continuous operating current capability and over 94% system efficiency at 12A. It supports high-frequency operation up to 1.25 MHz. The device also features temperature-compensated bi-directional current sense and an analog temperature output, simplifying system design and enhancing accuracy.
Designed for applications such as multiphase synchronous buck converters, POL DC-DC converters, and VRM for memory and graphic cards, the CSD95492QVM offers features like diode emulation, fault monitoring, and optimized dead time for shoot-through protection. Its ultra-low-inductance package and system-optimized PCB footprint contribute to reduced design time and simplified overall system completion.
The CSD95492QVM is available in an 18-VSON (5x4) package, suitable for surface mount applications. It operates within a temperature range of -40°C to 125°C (TJ) and supports a voltage range of 4.5V to 16V. The component is RoHS3 compliant and Halogen Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.83 | $1.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CSD95492QVM has a 20-A continuous operating current capability.
The CSD95492QVM achieves over 94% system efficiency at 12A.
The CSD95492QVM supports high-frequency operation up to 1.25 MHz.
The operating voltage range for the CSD95492QVM is 4.5V to 16V.
The operating temperature range for the CSD95492QVM is -40°C to 125°C (TJ).
The CSD95492QVM is available in an 18-VSON (5x4) package and an 18-PowerTFDFN package.
The CSD95492QVM is RoHS3 Compliant.
