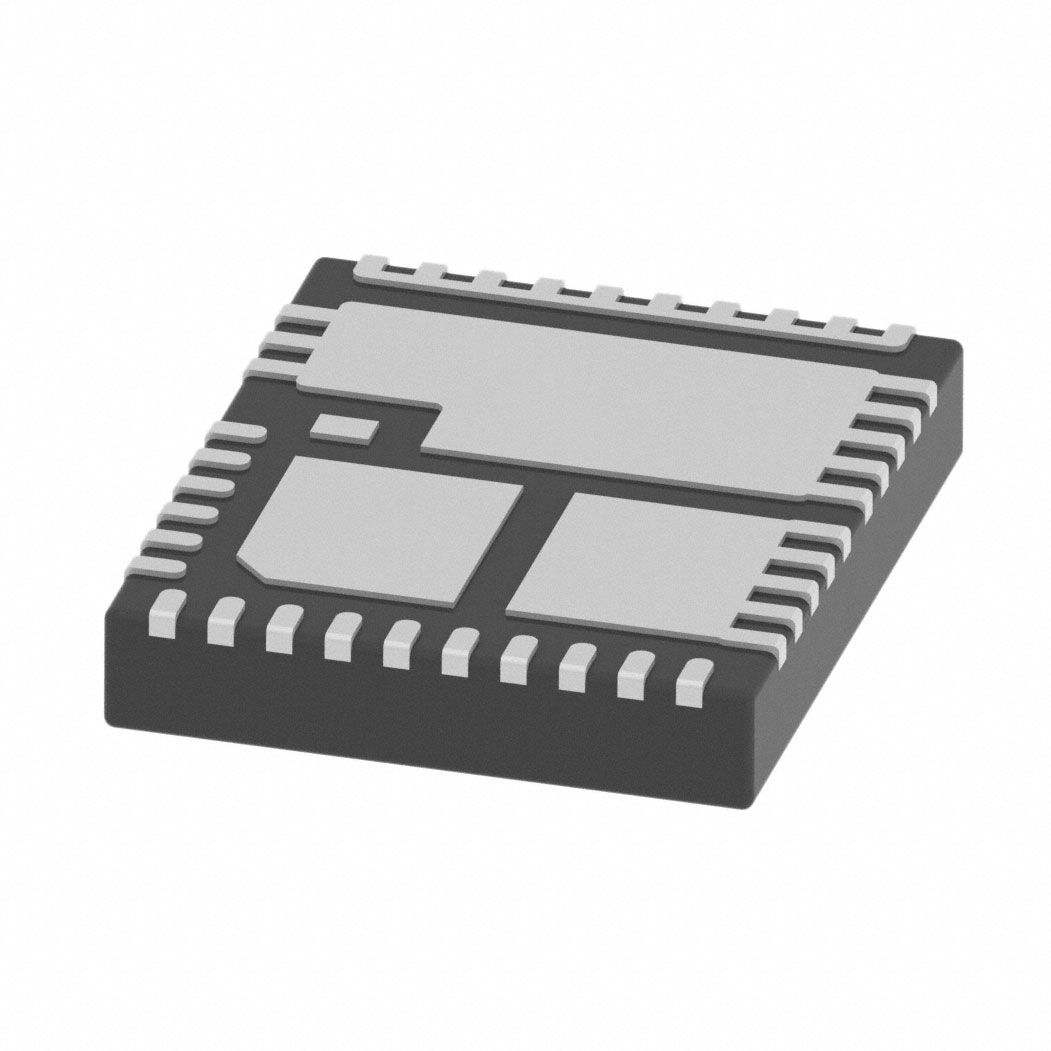

The CSD95480RWJ from Texas Instruments is a highly optimized NexFET™ power stage for synchronous buck converters. This device integrates the driver IC and power MOSFETs, delivering high-current, high-efficiency, and high-speed switching capabilities in a compact 5mm x 6mm QFN package.
Key features include 70A continuous operating current, over 95% system efficiency at 30A, and high-frequency operation up to 1.25 MHz. It also incorporates temperature-compensated bi-directional current sense, analog temperature output, and fault monitoring for simplified system design and improved accuracy.
The CSD95480RWJ is suitable for applications such as multiphase synchronous buck converters, POL DC-DC converters, and memory and graphic cards. It supports 3.3V and 5V PWM signals and features a tri-state PWM input. The device comes in a high-density QFN 5mm x 6mm footprint with an ultra-low-inductance package and thermally enhanced topside cooling.
This product is RoHS compliant with lead-free terminal plating and is halogen-free. It is important to note that this part is not recommended for new designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.83 | $2.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CSD95480RWJ has a continuous operating current capability of 70 A.
The CSD95480RWJ achieves over 95% system efficiency at 30 A.
The CSD95480RWJ supports high-frequency operation up to 1.25 MHz.
The input voltage range for the CSD95480RWJ is 4.5 V to 16 V.
The CSD95480RWJ operates within a temperature range of -40°C to 125°C (TJ).
The CSD95480RWJ is supplied in a 41-VQFN-CLIP (5x6) package.
The CSD95480RWJ is RoHS3 compliant.
