| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,149 pcs
|
1149 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Fault Protection | |
| Features | |
| Halogen Free | |
| Interface | |
| Load Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage |
The CSD95372BQ5MC from Texas Instruments is a highly optimized NexFET™ smart power stage for high-power, high-density synchronous buck converters. This device integrates driver IC and Power MOSFETs for efficient power stage switching.
Key electrical specifications include a 60-A continuous operating current capability and a system efficiency of 93.4% at 30 A. It supports high-frequency operation up to 1.25 MHz and features low power loss of 2.8 W at 30 A. The device also provides an analog temperature output and fault monitoring, including high-side short, overcurrent, and overtemperature protection.
Designed for high-current, low duty-cycle applications, the CSD95372BQ5MC is suitable for POL DC-DC converters, memory and graphic cards, and server VR applications. It operates within a voltage range of 4.5V to 16V and features a current rating of 90A.

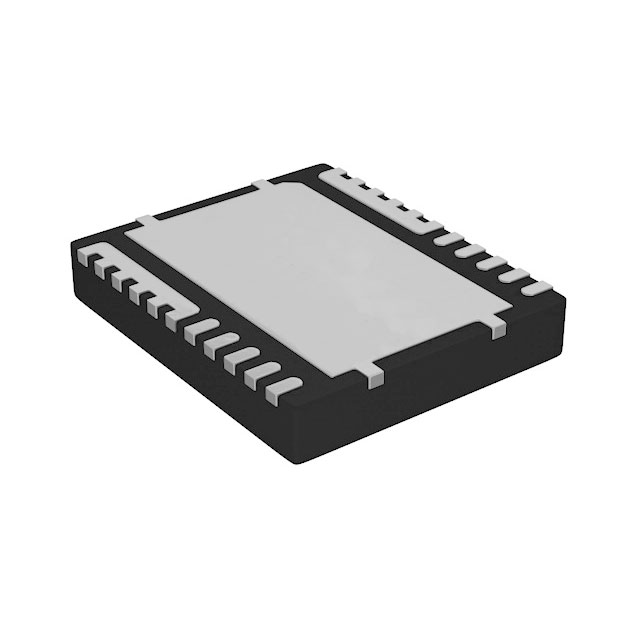

The power stage is housed in a compact 5 mm × 6 mm outline package, specifically a 12-VSON (5x6) or 12-PowerTFDFN. It utilizes surface mount technology for easy integration into PCB designs. The package is optimized for ultra-low inductance and includes DualCool™ packaging for enhanced thermal performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.78 | $2.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CSD95372BQ5MC has a continuous operating current capability of 60 A.
The system efficiency is 93.4% at 30 A.
The device supports high-frequency operation up to 1.25 MHz.
The operating temperature range is -55°C to 150°C (TJ).
The operating voltage range is 4.5V to 16V.
The CSD95372BQ5MC is available in a 12-VSON (5x6) or 12-PowerTFDFN package.
Yes, it includes fault protection for current limiting, over temperature, shoot-through, short circuit, and UVLO.
