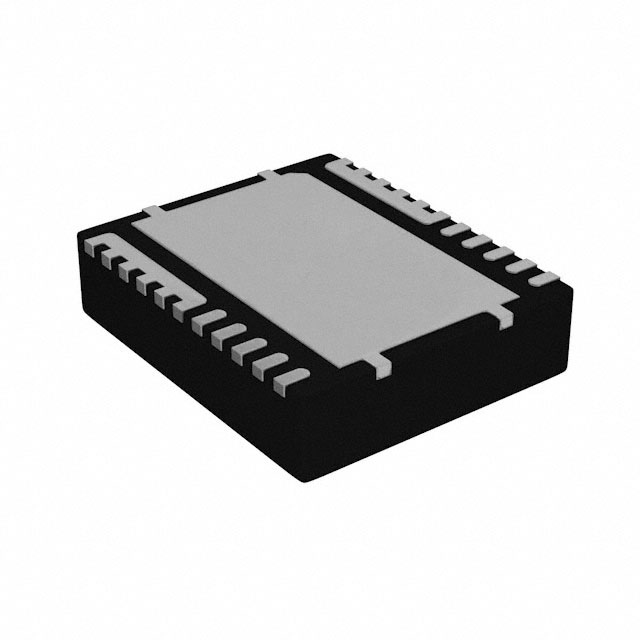

The CSD95372BQ5M from Texas Instruments is a highly optimized NexFET™ smart power stage designed for high-power, high-density synchronous buck converters. This integrated solution combines a driver IC and power MOSFETs to perform the power stage switching function, delivering high-current, high-efficiency, and high-speed switching capabilities.
Key electrical specifications include a 60A continuous operating current capability and a system efficiency of up to 93.4% at 30A, with low power loss of 2.8W at the same current. It supports high-frequency operation up to 1.25 MHz and operates within a voltage range of 4.5V to 16V.
This device integrates accurate current sensing and temperature sensing functionality, simplifying system design and improving accuracy. It also features fault monitoring for high-side short, overcurrent, and overtemperature conditions, along with optimized deadtime for shoot-through protection. The CSD95372BQ5M is compatible with 3.3V and 5V PWM signals and includes a tri-state PWM input.
The power stage is housed in a high-density 5mm x 6mm SON footprint with ultra-low inductance, optimized for system performance and reduced design time. It operates over a wide temperature range of -55°C to 150°C (TJ). The component is RoHS compliant with lead-free terminal plating and is halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.30 | $2.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CSD95372BQ5M has a continuous operating current capability of 60 A.
The system efficiency of the CSD95372BQ5M is 93.4% at 30 A.
The CSD95372BQ5M supports high-frequency operation up to 1.25 MHz.
The CSD95372BQ5M operates within a voltage range of 4.5 V to 16 V.
The operating temperature range for the CSD95372BQ5M is -55°C to 150°C (TJ).
The CSD95372BQ5M is supplied in a 12-LSON-CLIP (5x6) package, also referred to as 12-PowerLFDFN.
Yes, the CSD95372BQ5M is RoHS3 Compliant.
