Mfr Part #:

CSD87503Q3E

Name: CSD87503Q3E
Brand: Texas Instruments
SKU: CSD87503Q3E

Mfr Name: Texas Instruments

Description:

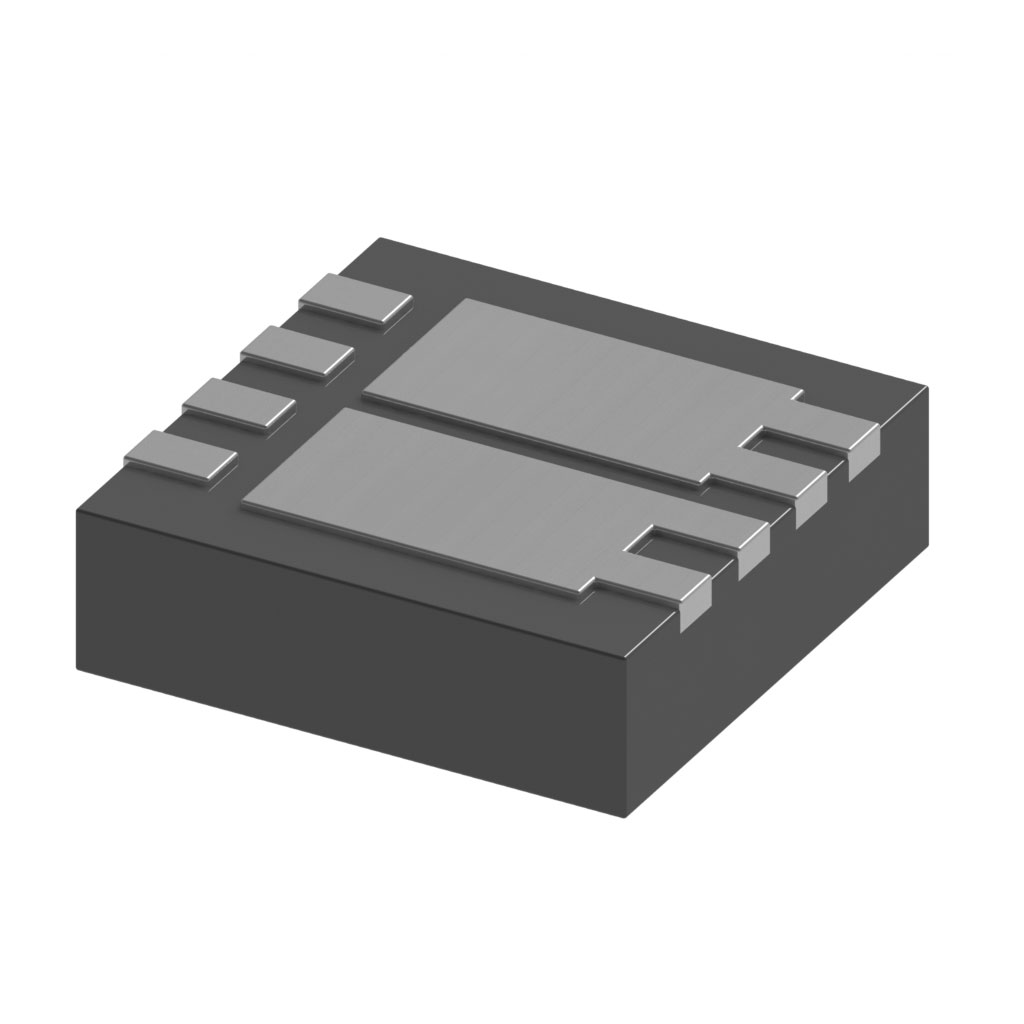

MOSFET 2 N-CHANNEL 30V 10A 8SON

Stock on Request

CSD87503Q3E Description

Short technical summary and product information.

MOSFET 2 N-CHANNEL 30V 10A 8SON

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Texas Instruments
Configuration	2 N-Channel (Dual) Common Source
Current	10A (Ta)
Drain to Source Voltage (Vdss)	30V
Gate Charge (Qg) (Max) @ Vgs	17.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1020pF @ 15V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power	15.6W
Rds On (Max) @ Id, Vgs	13.5mOhm @ 6A, 10V
Supplier Device Package	8-VSON (3.3x3.3)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.1V @ 250µA
