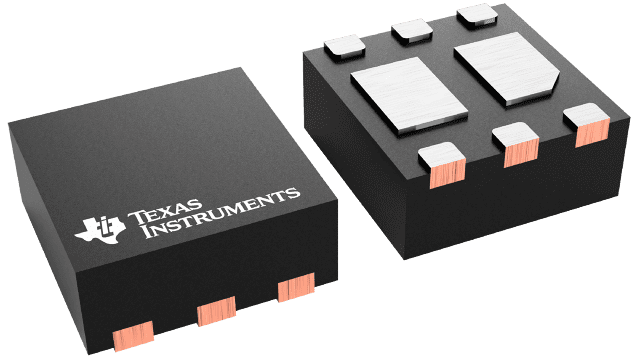

The CSD87502Q2 is a 30V dual N-Channel NexFET power MOSFET from Texas Instruments, housed in a space-saving SON 2x2mm plastic package. It contains two independent MOSFETs designed for half-bridge configurations in synchronous buck converters and other power supply applications. The device offers low drain-to-source on-resistance of 32.4mΩ maximum at VGS=10V and 42mΩ maximum at VGS=4.5V, minimizing conduction losses.
Key electrical specifications include a maximum drain-to-source voltage of 30V, gate-to-source voltage rating of ±20V, and continuous drain current of 5A (package limited). The device supports pulsed drain current up to 23A and has a maximum power dissipation of 2.3W. Typical on-resistance values are 27mΩ at VGS=10V and 35.5mΩ at VGS=4.5V, with a typical threshold voltage of 1.6V.
The dual MOSFETs are optimized for 5V gate drivers and are avalanche rated. The package is Pb and halogen free and RoHS compliant. The device operates over a temperature range of -55°C to 150°C and is suitable for point-of-load synchronous buck converters in networking, telecom, and computing systems, as well as adaptor or USB input protection and battery charging applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
| 10+ | $0.32 | $0.32 |
| 100+ | $0.26 | $0.26 |
| 500+ | $0.25 | $0.25 |
| 1,000+ | $0.24 | $0.24 |
| 3,000+ | $0.23 | $0.23 |
| 6,000+ | $0.21 | $0.21 |
| 9,000+ | $0.19 | $0.19 |
| 24,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage is 30V.
The maximum continuous drain current is 5A (package limited).
The maximum on-resistance at VGS=10V and ID=4A is 32.4mΩ.
The maximum gate-to-source voltage is ±20V.
The maximum power dissipation is 2.3W.
The operating temperature range is -55°C to 150°C.
