CSD87501L 30V dual common drain N-channel NexFET power MOSFET with 3.9mΩ on-resistance, 14A continuous current, and gate ESD protection. Surface mount in 10-Picostar package.
Mfr Part #:

CSD87501L

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
30V dual common drain N-channel NexFET power MOSFET with 3.9mΩ on-resistance, 14A continuous current, and gate ESD protection. Surface mount in 10-Picostar package.
✓ Total Stock: 16,931 pcs
$ Price Range: $0.37 - $0.81

CSD87501L Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
14,941 pcs
On Request
14941 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,124 pcs
On Request
1124 pcs On Request 1 On Request On Request On Request On Request On Request
Unit Electronics Co.,Limited ✓
Non-Authorised Inventory information
866 pcs
On Request
866 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CSD87501L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Mounting Type
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

CSD87501L Description

Short technical summary and product information.

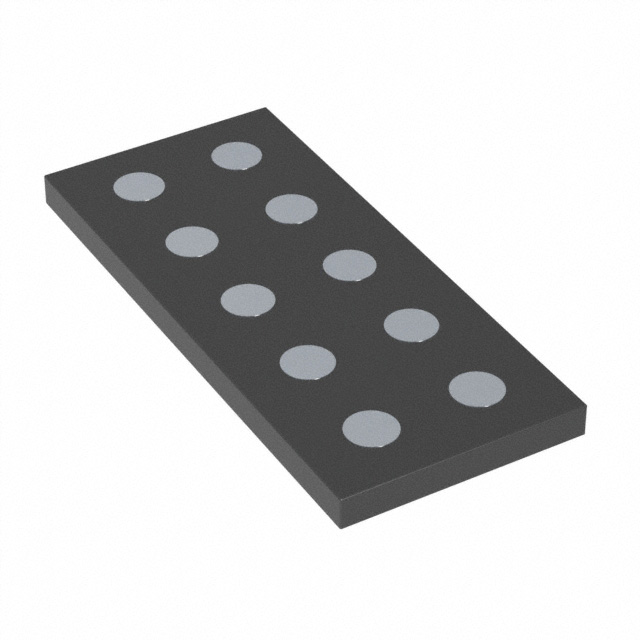

The CSD87501L is a 30V dual common drain N-channel NexFET power MOSFET from Texas Instruments. It features a low on-resistance of 3.9mΩ maximum at 10V gate drive and 5.5mΩ maximum at 4.5V. The device supports a continuous drain current of 14A at 25°C case temperature and a pulsed drain current of 72A. The logic level gate threshold voltage is 1.8V typical, enabling direct drive from low-voltage logic.



This MOSFET includes gate ESD protection rated at 2kV (HBM) and is designed for small footprint applications. The package is a 10-Picostar (3.37mm x 1.47mm x 0.2mm) land grid array, making it suitable for space-constrained designs. Typical applications include battery management, battery protection, and USB Type-C power delivery.



The device is RoHS3 compliant, lead free, and halogen free. It is rated for an operating temperature range of -55°C to 150°C (junction). The typical gate charge is 15nC at 4.5V, and thermal resistance from junction to ambient is 50°C/W on a standard FR4 board.

CSD87501L Quick Information

Product Type: Dual N-Channel MOSFET
Canonical Name: CSD87501L 30V Dual Common Drain N-Channel NexFET Power MOSFET
Subcategory: Dual N-Channel MOSFET Array

CSD87501L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

CSD87501L Estimated Pricing

Qty Low High
1+ $0.81 $0.81
10+ $0.52 $0.52
100+ $0.43 $0.43
500+ $0.41 $0.41
1,000+ $0.40 $0.40
3,000+ $0.38 $0.38
6,000+ $0.37 $0.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

CSD87501L Features

  • Low on-resistance of 3.9mΩ at 10V.
  • 14A continuous drain current rating.
  • Logic level gate for easy drive.
  • Gate ESD protection up to 2kV HBM.
  • Ultra-low profile 0.2mm LGA package.

CSD87501L Applications

  • Battery management in multi-cell packs.
  • USB Type-C power delivery.
  • Small handheld device power switching.
  • Battery protection circuits.

CSD87501L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating?

30V.

What package is the CSD87501L available in?

10-XFLGA (10-Picostar, 3.37mm x 1.47mm x 0.2mm).

What is the operating temperature range?

-55°C to 150°C (TJ).

Is the CSD87501L RoHS compliant?

Yes, RoHS3 compliant, lead free, and halogen free.

What is the gate charge?

15nC typical at 4.5V; 40nC maximum at 10V.

What is the on-resistance?

3.9mΩ maximum at 10V, 5.5mΩ maximum at 4.5V.
