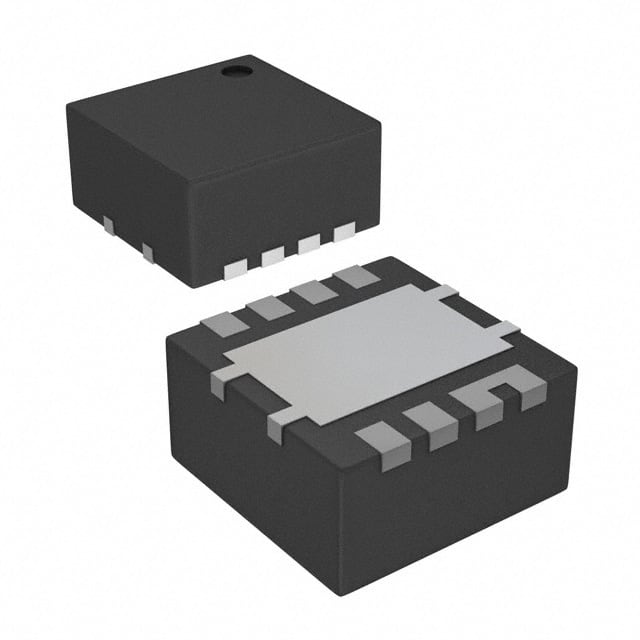

Mfr Part #:

CSD87350Q5D

Dual N-channel MOSFET power block with 30V drain-source voltage rating, 40A continuous drain current, and 5.9 mOhm maximum on-resistance.

✓ Total Stock: 257,507 pcs

$ Price Range: $1.03 - $2.41

CSD87350Q5D Available from 10 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	200,000 pcs On Request	200000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Romaks Technologies ✓ Non-Authorised Inventory information	41,091 pcs On Request	41091 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Unit Electronics Co.,Limited ✓ Non-Authorised Inventory information	10,831 pcs On Request	10831 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	1,610 pcs On Request	1610 pcs	On Request	1	On Request	On Request	1219+	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	1,469 pcs On Request	1469 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,012 pcs On Request	1012 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Rayichip ✓ Non-Authorised Inventory information	725 pcs On Request	725 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	513 pcs On Request	513 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	216 pcs On Request	216 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	40 pcs On Request	40 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

CSD87350Q5D Description

Short technical summary and product information.

The CSD87350Q5D from Texas Instruments is a 30V, N-channel synchronous buck NexFET power block designed for high-current, high-efficiency, and high-frequency operation. It features a dual N-channel configuration in a half-bridge topology and is housed in a compact 8-LSON (5mm x 6mm) package. With a continuous drain current of 40A at 25°C and typical system efficiency of 90% at 25A, it delivers excellent performance for demanding power supply designs. The device supports a maximum operating frequency of 1.5 MHz and is optimized for 5V gate drive applications. Key electrical specifications include a maximum drain-source on-resistance of 5.9 mOhm at 20A and 8V, a maximum gate charge of 10.9 nC at 4.5V, and a maximum input capacitance of 1770 pF at 15V. The device operates over a junction temperature range of -55°C to 150°C and is rated for surface mount assembly. The lead-free terminal plating, RoHS compliance, and halogen-free construction make it suitable for environmentally conscious designs. Applications include synchronous buck converters, voltage regulator modules, and high-density power supplies.

CSD87350Q5D Quick Information

Product Type: MOSFET Array (Power Block)

Series: NexFET

Canonical Name: CSD87350Q5D Synchronous Buck NexFET Power Block

Subcategory: Power Block

CSD87350Q5D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

CSD87350Q5D Estimated Pricing

Qty	Low	High
1+	$2.41	$2.41
10+	$1.64	$1.64
100+	$1.38	$1.38
500+	$1.24	$1.24
1,000+	$1.13	$1.13
2,500+	$1.07	$1.07
5,000+	$1.03	$1.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

CSD87350Q5D Features

30V drain-source voltage rating.
40A continuous drain current capability.
5.9 mOhm max on-resistance at 8V gate drive.
90% typical system efficiency at 25A.
1.5 MHz maximum operating frequency.

CSD87350Q5D Applications

Used in high-frequency synchronous buck converters.
Ideal for voltage regulator modules (VRMs).
Suitable for high-density power supply designs.
Designed for 5V gate drive applications.

CSD87350Q5D FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage of this MOSFET array?

30 V

What is the continuous drain current at 25°C?

40 A

What is the maximum drain-source on-resistance?

5.9 mOhm at VGS=8V and ID=20A

What is the operating temperature range?

-55°C to 150°C (junction)

Is the CSD87350Q5D RoHS compliant?

Yes, it is listed as RoHS compliant.

What package does this device come in?

8-PowerLDFN (8-LSON 5x6 mm).

What type of MOSFET configuration does it have?

2 N-Channel (Dual) in a half-bridge Power Block.

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Texas Instruments
Configuration	2 N-Channel (Dual)
Current	40 A
Drain to Source Voltage (Vdss)	30 V
Efficiency	90%
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	10.9 nC
Halogen Free	Halogen Free
Input Capacitance (Ciss) (Max) @ Vds	1770 pF
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C
Power	12 W
Rds On (Max) @ Id, Vgs	5.9 mOhm
SVHC Present	Present
Storage Temperature	-55°C ~ 150°C
Supplier Device Package	8-LSON (5x6)
Supplier Package	8-LSON (5x6)
Tape & Reel	Yes
Technology	MOSFET (Metal Oxide)
Topology	Power Block
Vgs(th) (Max) @ Id	2.1 V
