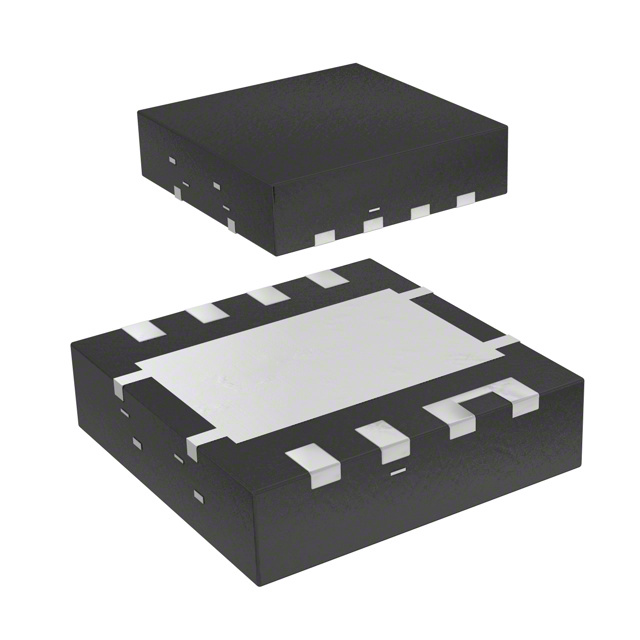

The CSD87333Q3DT is a dual N-channel asymmetric MOSFET from Texas Instruments, designed for efficient power management in space-constrained applications. It features a drain-source voltage rating of 30V and a continuous drain current of 15A, with a maximum on-resistance of 14.3 mOhm at 4A and 8V gate drive. The logic level gate allows direct drive from 5V logic signals, simplifying interface requirements.
This MOSFET array offers low gate charge of 4.6 nC and input capacitance of 662 pF, enabling fast switching and reduced driver losses. The device is housed in a compact 8-PowerTDFN package with a 8-VSON (3.3x3.3) supplier device package, suitable for surface mount assembly. The maximum junction temperature is 125°C, allowing operation in moderate thermal environments.
Typical applications include DC-DC converters, load switches, and battery protection circuits where high efficiency and small footprint are critical. The asymmetrical configuration provides design flexibility for half-bridge or other multi-switch topologies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.39 | $1.39 |
| 10+ | $0.92 | $0.92 |
| 100+ | $0.76 | $0.76 |
| 250+ | $0.76 | $0.76 |
| 500+ | $0.72 | $0.72 |
| 1,000+ | $0.69 | $0.69 |
| 2,500+ | $0.68 | $0.68 |
| 5,000+ | $0.68 | $0.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 30V.
The maximum continuous drain current is 15A.
The maximum Rds(on) is 14.3 mOhm at Id = 4A and Vgs = 8V.
The maximum gate threshold voltage (Vgs(th)) is 1.2V at Id = 250 µA.
It is offered in an 8-PowerTDFN package with a supplier device package of 8-VSON (3.3x3.3).
Yes, it is listed as RoHS3 compliant, though this data is unverified and low confidence.
The maximum junction temperature (TJ) is 125°C.
