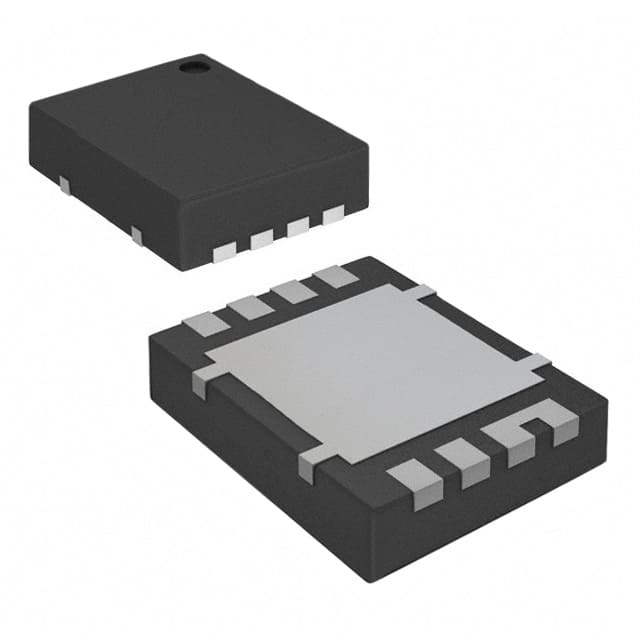

CSD86350Q5D CSD86350Q5D is a 25V, 40A dual N-channel NexFET power MOSFET array in a half-bridge configuration. Surface mount in 8-PowerLDFN package.
Mfr Part #:

CSD86350Q5D

Available from 5 distributors
Mfr Name: Texas Instruments
Texas Instruments
CSD86350Q5D is a 25V, 40A dual N-channel NexFET power MOSFET array in a half-bridge configuration. Surface mount in 8-PowerLDFN package.
✓ Total Stock: 201,996 pcs
$ Price Range: $1.42 - $3.74

CSD86350Q5D Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CSD86350Q5D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

CSD86350Q5D Description

Short technical summary and product information.

The CSD86350Q5D is a 25V, 40A dual N-channel NexFET power MOSFET array designed as a half-bridge power block for synchronous buck converters. It features a 6 mOhm max on-resistance at 20A and 8V gate drive, and supports high-frequency operation up to 1.5 MHz. The device achieves 90% system efficiency at 25A.



The power block is optimized for 5V gate drive and offers low switching losses and ultra-low inductance packaging. It is housed in a compact 8-PowerLDFN (5mm x 6mm) surface-mount package with lead-free terminal plating. The junction temperature range is -55°C to 150°C.



This component is RoHS compliant, halogen free, and REACH unaffected. It is suitable for applications such as synchronous buck converters, high-frequency power supplies, and voltage regulator modules.

CSD86350Q5D Quick Information

Product Type: MOSFET Array (Half-Bridge Power Block)
Series: CSD86350Q5D
Canonical Name: CSD86350Q5D 25V 40A Dual N-Channel NexFET Power MOSFET Array (Half-Bridge Power Block)
Subcategory: Half-Bridge Power Block

CSD86350Q5D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

CSD86350Q5D Estimated Pricing

Qty Low High
1+ $3.74 $3.74
10+ $2.45 $2.45
100+ $1.72 $1.72
500+ $1.52 $1.52
1,000+ $1.46 $1.46
2,500+ $1.42 $1.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

CSD86350Q5D Features

  • 25V drain-source voltage rating.
  • 40A continuous drain current at 25°C.
  • 6 mOhm max on-resistance at 20A.
  • Half-bridge configuration for synchronous buck.
  • High-frequency operation up to 1.5 MHz.

CSD86350Q5D Applications

  • Synchronous buck converter designs.
  • High-frequency, high-current power supplies.
  • Point-of-load DC-DC converters.
  • VRM and VRD applications.

CSD86350Q5D FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of CSD86350Q5D?

The drain-source voltage (Vdss) is 25 V.

What is the maximum continuous drain current?

The continuous drain current at TA=25°C is 40 A.

What package does CSD86350Q5D use?

It is surface mount in an 8-PowerLDFN package (8-LSON 5x6 mm).

What is the operating temperature range?

The junction operating temperature range is -55°C to 150°C.

Is CSD86350Q5D RoHS compliant?

It is listed as RoHS compliant from the manufacturer page.
