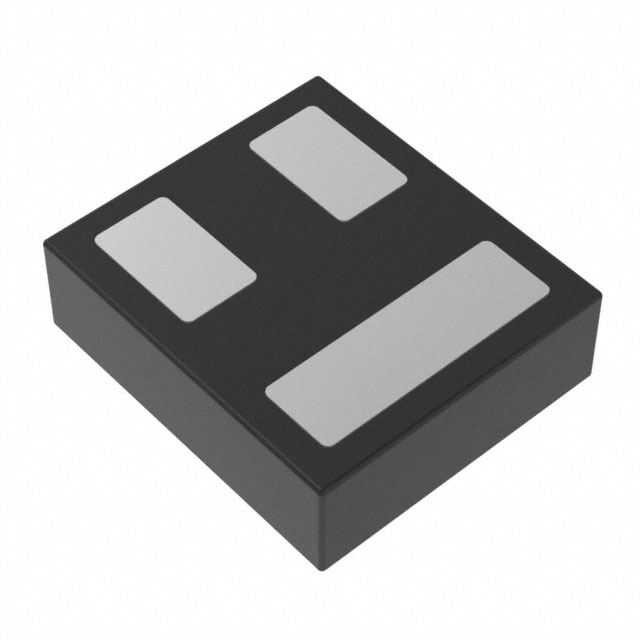

The CSD25501F3 is a -20V P-Channel MOSFET from Texas Instruments, part of the FemtoFET family. It is designed for space-constrained applications requiring low on-resistance and fast switching.
This MOSFET features a maximum drain current of 3.6A at TC=25°C, with a typical gate threshold voltage of -0.75V. The on-resistance is 76mΩ maximum at VGS=4.5V and 125mΩ at VGS=2.5V. It has ultra-low gate charge (1.02nC total) and low input capacitance (385pF at VDS=10V), enabling efficient high-frequency operation.
The device is housed in a 3-XFLGA package (PICOSTAR YJN) measuring 0.69mm x 0.6mm with a maximum height of 0.22mm. It supports surface mount mounting and includes integrated ESD protection. The operating temperature range is -55°C to 150°C.
Typical applications include load switching, power management in portable devices, and battery protection circuits. The logic-level gate drive (1.8V/4.5V) allows direct interface with low-voltage controllers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
| 10+ | $0.25 | $0.25 |
| 100+ | $0.16 | $0.16 |
| 500+ | $0.12 | $0.12 |
| 1,000+ | $0.10 | $0.10 |
| 3,000+ | $0.09 | $0.09 |
| 6,000+ | $0.08 | $0.08 |
| 9,000+ | $0.07 | $0.07 |
| 24,000+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CSD25501F3 comes in a 3-XFLGA (PICOSTAR YJN) surface mount package, also known as 3-LGA (0.73x0.64).
The operating temperature range is -55°C to 150°C.
Yes, the CSD25501F3 is RoHS3 compliant and lead-free.
The maximum drain current is 3.6A at TC=25°C.
The maximum on-resistance is 76mΩ at VGS=4.5V and 125mΩ at VGS=2.5V.
Yes, it includes an integrated ESD protection diode.
The typical gate threshold voltage is -0.75V, with a maximum of 1.05V at ID=250µA.
