| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
383,684 pcs
|
383684 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
13,530 pcs
|
13530 pcs | On Request | 1 | On Request | On Request | 1701+ | On Request | On Request | |
|
3,521 pcs
|
3521 pcs | On Request | 1 | 3 | On Request | 21+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 18+22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The CSD25481F4 is a 20V P-Channel MOSFET from Texas Instruments, designed for efficient power switching in space-constrained applications. It supports a continuous drain current of 2.5A at 25°C and a pulsed current of 13.1A. The device features ultra-low on-resistance, with a typical value of 90mΩ at VGS=4.5V and a maximum of 105mΩ, enabling low conduction losses.
This FemtoFET MOSFET offers a total gate charge of 0.913nC at VGS=4.5V, along with low gate-to-drain and gate-to-source charges, making it suitable for high-speed switching. It includes integrated ESD protection rated above 4kV HBM and 2kV CDM. The device operates over a junction temperature range of -55°C to 150°C and is RoHS compliant, lead-free, and halogen-free.

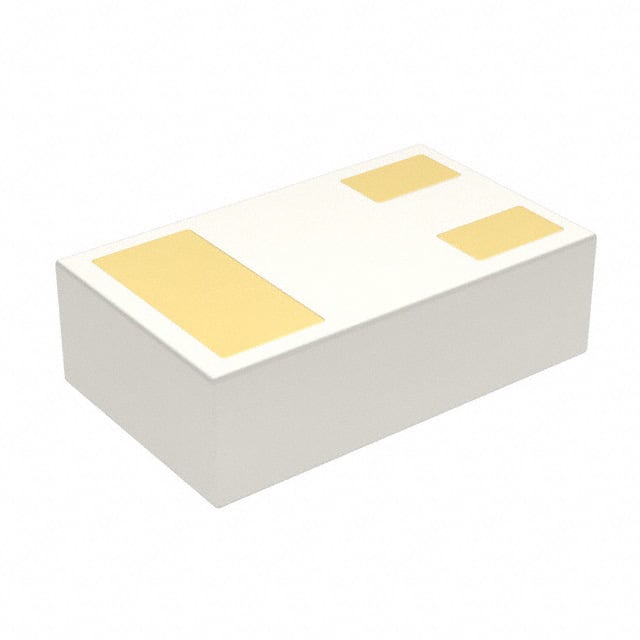

The CSD25481F4 is offered in a 3-XFDFN package (Femto 0402 LGA) with dimensions of 1.0mm × 0.6mm × 0.36mm, providing a 60% footprint reduction compared to standard small signal MOSFETs. It is optimized for load switch and general purpose switching applications in battery-powered handheld and mobile devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.26 | $0.26 |
| 100+ | $0.16 | $0.16 |
| 500+ | $0.12 | $0.12 |
| 1,000+ | $0.11 | $0.11 |
| 3,000+ | $0.09 | $0.09 |
| 6,000+ | $0.08 | $0.08 |
| 9,000+ | $0.07 | $0.07 |
| 24,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-20V
3-XFDFN (Femto 0402 LGA) surface mount
-55°C to 150°C (junction)
Yes, RoHS3 compliant and lead/halogen free
2.5A at TA=25°C
90mΩ typical, 105mΩ max
-12V max
