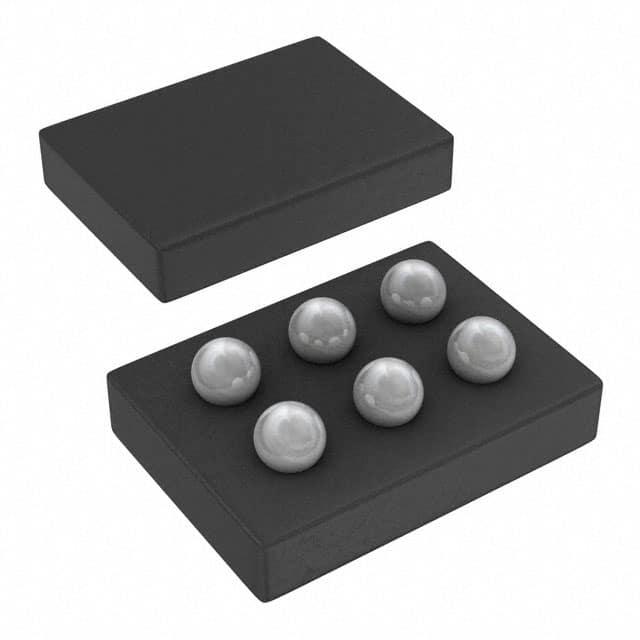

The CSD23203WT is a P-Channel MOSFET from Texas Instruments, utilizing Metal Oxide technology for low-voltage switching applications. It is designed for efficient power management and load switching in space-constrained designs.
Key electrical specifications include a maximum drain-source voltage of 8V and a continuous drain current of 3A at 25°C ambient temperature. The device features a low on-resistance of 19.4mOhm at Id = 1.5A and Vgs = 4.5V, minimizing conduction losses. The gate threshold voltage is 1.1V at Id = 250µA, enabling logic-level drive. Gate charge is 6.3nC and input capacitance is 914pF, supporting fast switching transitions.
Thermally, the MOSFET can dissipate up to 750mW at 25°C and operates over a junction temperature range of -55°C to 150°C. It is housed in a 6-UFBGA/DSBGA package with a supplier device package of 6-DSBGA (1x1.5), suitable for surface-mount assembly. The part is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.77 | $1.77 |
| 10+ | $1.12 | $1.12 |
| 100+ | $0.65 | $0.65 |
| 250+ | $0.65 | $0.65 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.50 | $0.50 |
| 2,500+ | $0.48 | $0.48 |
| 5,000+ | $0.48 | $0.48 |
| 10,000+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 V.
6-UFBGA, DSBGA; supplier device package 6-DSBGA (1x1.5).
-55°C to 150°C (junction).
RoHS3 compliant.
3 A.
19.4 mOhm at Id = 1.5 A, Vgs = 4.5 V.
1.1 V at Id = 250 µA.
