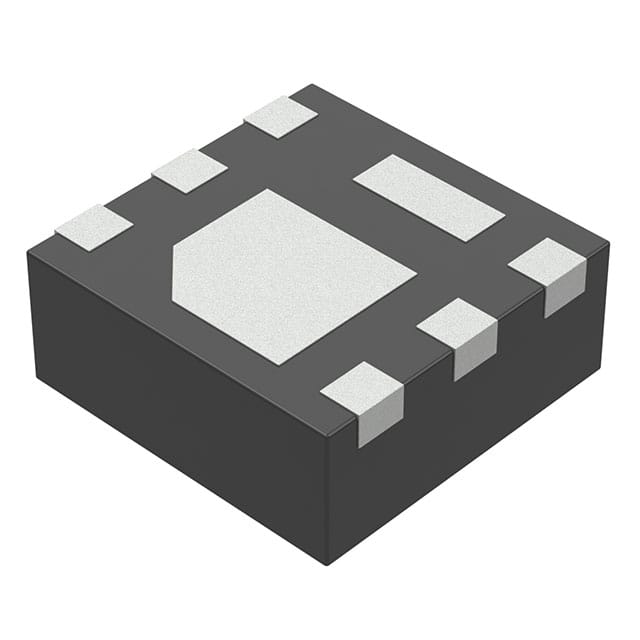

The CSD17318Q2 is a 30V N-channel NexFET power MOSFET from Texas Instruments. It is designed for power conversion applications and supports 5V gate drive, making it suitable for low-voltage switching circuits.
The device features a continuous drain current rating of 25A at 25°C case temperature and a package-limited current of 22A. Maximum drain-to-source on-resistance is 16.9mOhm at 4.5V gate drive and 30mOhm at 2.5V gate drive. Total gate charge is typically 6nC and the device is logic-level compatible.
The MOSFET is housed in a 6-pin WSON (2mm x 2mm) surface-mount package with an exposed pad for thermal management. Operating temperature range is -55°C to 150°C. The part is lead-free, RoHS compliant, and halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.65 | $0.65 |
| 10+ | $0.40 | $0.40 |
| 50+ | $0.29 | $0.29 |
| 100+ | $0.26 | $0.26 |
| 500+ | $0.19 | $0.19 |
| 3,000+ | $0.15 | $0.15 |
| 9,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage is 30V.
The continuous drain current is 25A at Tc=25°C (silicon limited). The package-limited current is 22A.
Maximum on-resistance is 16.9mOhm at VGS=4.5V. At 8A/8V it is 15.1mOhm.
The operating temperature range is -55°C to 150°C junction temperature.
It comes in a 6-WDFN exposed pad package, also known as 6-WSON (2mm x 2mm), surface mount.
The part is reported RoHS3 compliant, lead-free, and halogen-free.
Typical total gate charge is 6nC at Vgs=4.5V.
