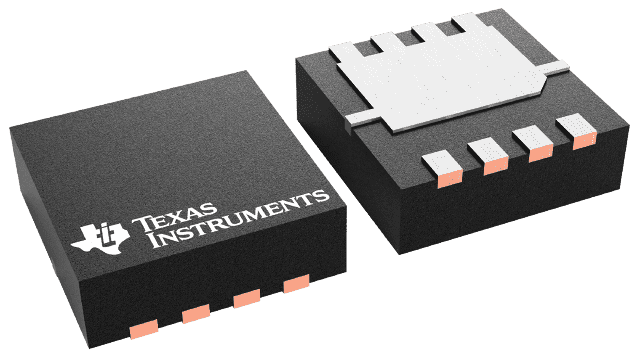

The Texas Instruments CSD16409Q3 is an N-Channel NexFET™ Power MOSFET engineered to minimize losses in power conversion applications. It features a drain-to-source voltage (VDS) of 25V and a maximum continuous drain current (ID) of 60A at 25°C.
Key electrical characteristics include a low on-state resistance (RDS(on)) of 12.4 mΩ at VGS = 4.5V and 6.2 mΩ at VGS = 10V. The device also boasts ultra-low gate charge (Qg) of 4 nC and gate-to-drain charge (Qgd) of 1 nC, optimizing switching performance.
This MOSFET is housed in a compact SON 3.3mm x 3.3mm plastic package, suitable for surface mount applications. It is designed for use in point-of-load synchronous buck converters for networking, telecom, and computing systems, and is optimized for control FET applications.
The CSD16409Q3 operates within a junction and storage temperature range of -55°C to 150°C and is Pb-free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage is 25 V.
The maximum gate-to-source voltage is +16 V, and the minimum is -12 V.
It is rated up to 60 A at TC = 25°C, and up to 15 A on a 1 in² copper FR4 board under stated datasheet conditions.
The maximum on-resistance at VGS = 4.5 V is 12.4 mΩ.
The operating junction and storage temperature range is -55 °C to 150 °C.
It is available in a SON package.
The typical total gate charge is 4 nC.
