| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

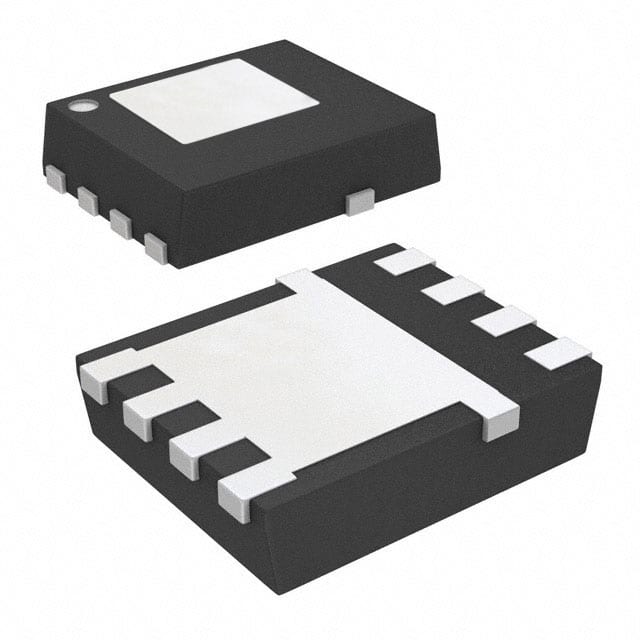

The CSD16407Q5C is a 25V N-Channel NexFET Power MOSFET from Texas Instruments designed for low-loss power conversion. It features a maximum drain-source on-resistance of 2.4mΩ at Vgs = 10V and 2.5mΩ typical at Vgs = 4.5V, enabling efficient synchronous buck converter operation in networking, telecom, and computing systems. The device achieves a typical gate charge total of 13.3nC at Vgs = 4.5V, with a gate-to-drain charge of 3.5nC.
This MOSFET is avalanche rated with a single pulse avalanche energy of 218mJ. It supports a continuous drain current of 100A when the case is at 25°C, and 31A at the ambient condition (on a 1-inch² Cu pad on FR4). Pulsed drain current capability reaches 200A. The operating junction temperature range spans -55°C to 150°C.
The CSD16407Q5C is housed in a DualCool™ 8-PowerTDFN package (5mm × 6mm) with supplier device package designation 8-VSON-CLIP, optimized for two-sided cooling. It is RoHS compliant, halogen free, and has Pb-free terminal plating. The part is surface mount and supplied on tape and reel (2500 units per reel).
The maximum drain-source voltage is 25 V.
The continuous drain current is 31 A at an ambient temperature of 25°C, and 100 A when the case temperature is 25°C.
It comes in an 8-PowerTDFN surface mount package, also known as 8-VSON-CLIP (5x6).
The operating junction temperature range is -55°C to 150°C.
Yes, it is RoHS compliant, halogen free, and has Pb-free terminal plating.
The typical gate charge total is 13.3 nC at Vgs = 4.5 V, with a gate-to-drain charge of 3.5 nC.
The maximum on-resistance is 2.4 mΩ at Id = 25 A, Vgs = 10 V; typical value is 1.8 mΩ.
