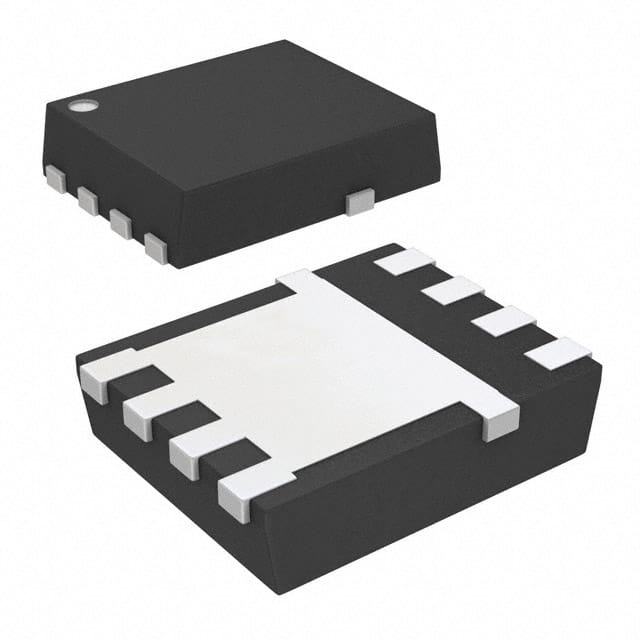

The CSD16403Q5A is a 25V N-Channel NexFET power MOSFET from Texas Instruments, designed to minimize losses in power conversion applications. It offers a maximum drain-source voltage of 25V and continuous drain current of 100A at Tc=25°C (28A at Ta=25°C). The device features ultra-low gate charge (13.3 nC typical) and low on-resistance: 2.8 mΩ maximum at Vgs=10V and 3.7 mΩ maximum at Vgs=4.5V. It is logic level capable with a typical gate threshold voltage of 1.6V, enabling direct drive from low-voltage controllers. The MOSFET is avalanche rated for ruggedness and operates over a temperature range of -55°C to 150°C.
The CSD16403Q5A is optimized for control FET applications in point-of-load synchronous buck converters used in networking, telecom, and computing systems. It is housed in a surface mount 8-PowerTDFN package (8-VSONP 5x6mm) with low thermal resistance. The device is RoHS3 compliant, halogen free, and has Pb-free terminal plating. NexFET is a trademark of Texas Instruments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.62 | $2.62 |
| 10+ | $1.69 | $1.69 |
| 50+ | $1.28 | $1.28 |
| 100+ | $1.15 | $1.15 |
| 500+ | $0.92 | $0.92 |
| 2,500+ | $0.77 | $0.77 |
| 7,500+ | $0.70 | $0.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 V.
100 A at Tc=25°C, 28 A at Ta=25°C.
2.8 mΩ max at Vgs=10V, Id=20A; 3.7 mΩ max at Vgs=4.5V.
-55°C to 150°C.
Yes, RoHS3 compliant.
8-PowerTDFN (8-VSONP 5x6mm).
Yes, logic level.
