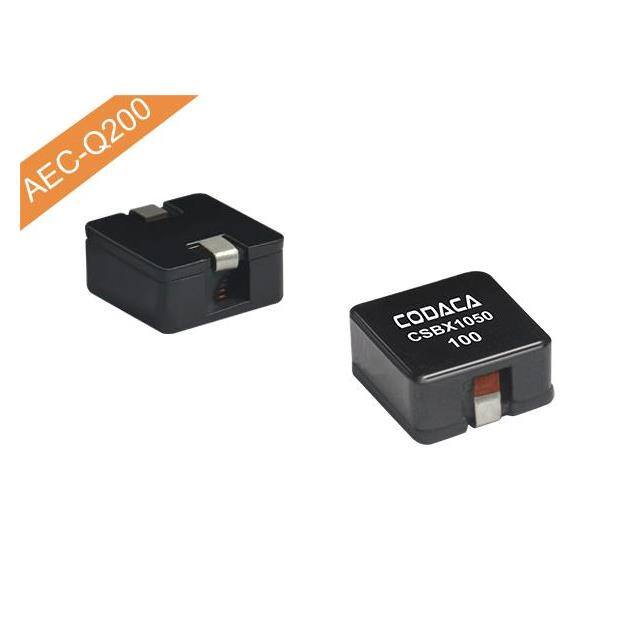

CSBX1050-100M The CODACA CSBX1050-100M is a shielded, wirewound power inductor with a 10 µH inductance and a current rating of 7.1A. It features a surface mount design and a composite core.
Mfr Part #:

CSBX1050-100M

Available from 2 distributors
Mfr Name: Codaca
Codaca
The CODACA CSBX1050-100M is a shielded, wirewound power inductor with a 10 µH inductance and a current rating of 7.1A. It features a surface mount design and a composite core.
✓ Total Stock: 64 pcs

CSBX1050-100M Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
32 pcs
On Request
32 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
32 pcs
On Request
32 pcs On Request 1 On Request On Request On Request On Request On Request
