| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,256 pcs
|
1256 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Diameter | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Ratings | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage | |
| Voltage Rating |

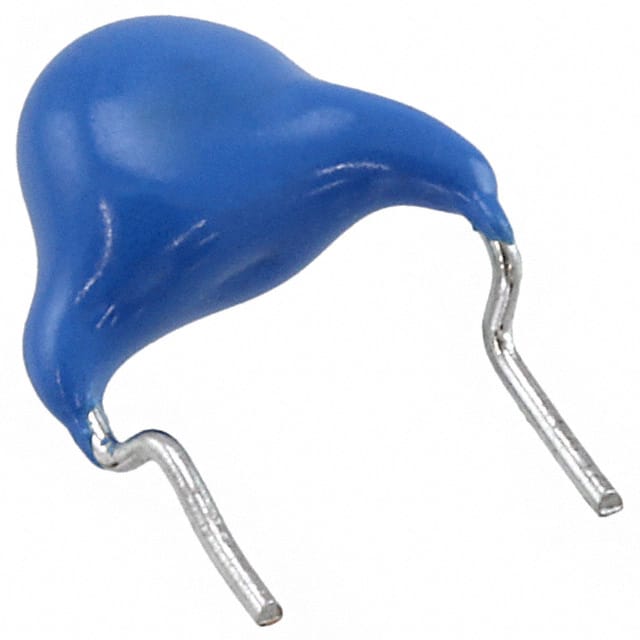

The CS70-B2GA101KYGS is a ceramic disc capacitor manufactured by TDK Corporation, designed for safety applications. It offers a capacitance of 100pF with a tolerance of ±10% and is rated for 250VAC operation. The capacitor carries X1 and Y2 safety ratings, making it suitable for line-to-ground and across-the-line EMI suppression circuits.
This capacitor features a temperature coefficient of B and an operating temperature range of -25°C to 105°C. It is a through-hole component with a radial disc package, having a diameter of 7.00mm and a height of 11.00mm. The lead spacing is 7.50mm and the leads are formed with a kinked style for secure mounting on PCBs.
100 pF.
250 VAC.
B (TDK standard coefficient code).
±10%.
Radial, Disc.
X1 and Y2.
-25°C to 105°C.
