| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Interface | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Power (Watts) | |
| Power Consumption | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The CS61574A-IL1ZR from Cirrus Logic Inc. is a telecom integrated circuit providing a complete analog transmit and receive line interface for T1 or E1 applications. This low-power device operates from a 4.75V to 5.25V supply and supports processor-based or stand-alone operation, interfacing with industry-standard T1 and E1 framers.
Key features include a receiver jitter attenuator optimized for minimum delay and a transmitter with internal pulse shaping and a matched constant impedance output stage for signal quality on mismatched lines. It is fully compliant with AT&T 43802 bit requirements and offers low power consumption, typically 350 mW.

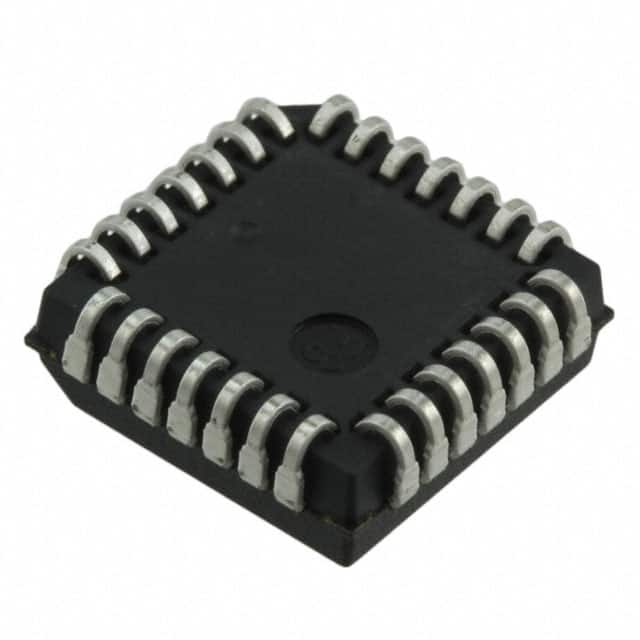

The device is available in a 28-PLCC package and is designed for surface mounting. Its operating temperature range is -40°C to 85°C, making it suitable for various telecommunications equipment.
Applications include interfacing network equipment such as DS3 and channel banks to a DS3 cross-connect, interfacing customer premises equipment to a CSU, and building channel service units.
The supply voltage is 4.75V to 5.25V.
The operating temperature range is -40°C to 85°C.
The CS61574A-IL1ZR is available in a 28-LCC (J-Lead) package.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
The REACH status is REACH Unaffected.
