| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Diameter | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Ratings | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage |

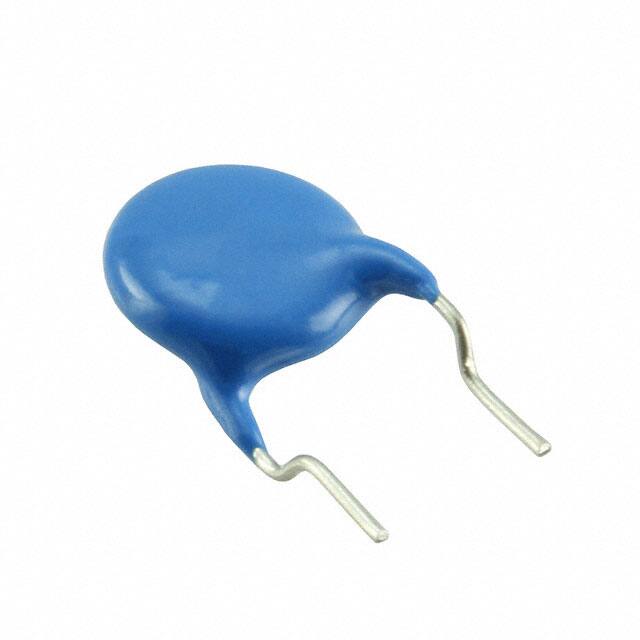

The TDK CS45-E2GA472M-NKA is a high voltage ceramic disc capacitor designed for safety applications. It offers a capacitance of 4700 pF with a voltage rating of 440 VAC, a tolerance of ±20%, and an E temperature coefficient. The component features X1 and Y2 safety ratings, making it suitable for line-to-ground and across-the-line filtering in power supplies and EMI suppression circuits.
Mechanically, the capacitor is a through hole radial disc package with formed kinked leads. The lead spacing is 7.50 mm, and the disc diameter is 11.00 mm. It operates over a temperature range of -25°C to 125°C.
The part is compliant with RoHS3 and REACH regulations, and has an MSL rating of 1 (unlimited). It is designed for safety-critical applications requiring reliable isolation and surge protection.
4700 pF.
440 VAC.
±20%.
E (specific coefficient not further defined).
Radial, Disc (through hole).
X1 and Y2.
-25°C to 125°C.
