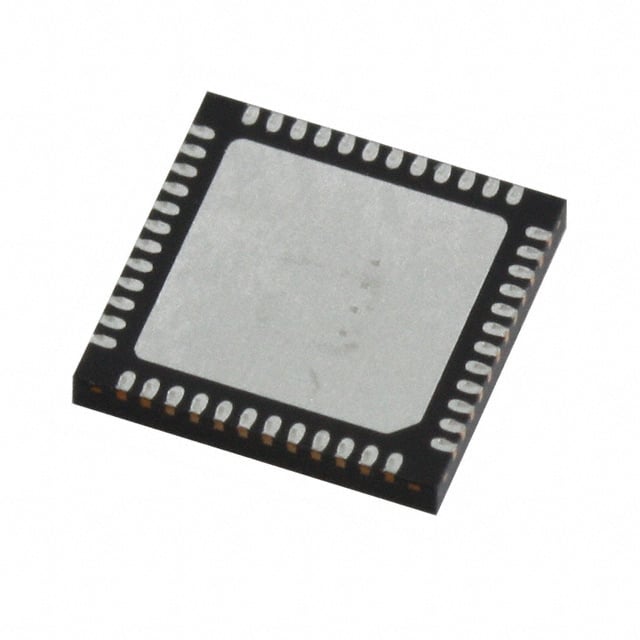

CS4207-CNZ The Cirrus Logic Inc. CS4207-CNZ is an Audio HD Codec with a 24-bit resolution and a dynamic range of 105/110 dB. It operates within a voltage range of 2.97V to 5.25V.
Mfr Part #:

CS4207-CNZ

Available from 3 distributors
Mfr Name: Cirrus Logic Inc.
Cirrus Logic Inc.
The Cirrus Logic Inc. CS4207-CNZ is an Audio HD Codec with a 24-bit resolution and a dynamic range of 105/110 dB. It operates within a voltage range of 2.97V to 5.25V.
✓ Total Stock: 2,642 pcs

CS4207-CNZ Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,581 pcs
On Request
2581 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
41 pcs
On Request
41 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CS4207-CNZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Interface
Dynamic Range, ADCs
Mounting Type
Number of ADCs
Operating Temperature
Resolution (Bits)
SVHC Present
Sigma Delta
Supplier Device Package
Type
Voltage
View Similar Products (0)

CS4207-CNZ Description

Short technical summary and product information.

The Cirrus Logic Inc. CS4207-CNZ is an Audio HD Codec designed for various audio applications. It features a 24-bit resolution and supports data interfaces such as HDA and S/PDIF. The device offers a dynamic range of 105 dB for ADCs and 110 dB for DACs.



Operating within a voltage range of 2.97V to 5.25V, this codec is suitable for a wide array of electronic designs. It is housed in a 48-QFN-EP (6x6) package, requiring surface mount installation. The operating temperature range is from -40°C to 85°C, ensuring reliability in diverse environmental conditions.



This component is classified under the Codecs category, making it a key part for audio processing systems. Its Sigma Delta architecture and multiple ADCs contribute to its high-performance audio capabilities.

CS4207-CNZ Quick Information

Product Type: Audio Codec
Canonical Name: Cirrus Logic Inc. CS4207-CNZ Audio HD Codec
Subcategory: Codecs

CS4207-CNZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CS4207-CNZ Features

  • Audio HD Codec with 24-bit resolution.
  • Supports HDA and S/PDIF data interfaces.
  • Operates from 2.97V to 5.25V supply.
  • Wide dynamic range of 105/110 dB.
  • Surface mountable in 48-QFN-EP package.

CS4207-CNZ Applications

  • Ideal for high-fidelity audio systems.
  • Suitable for consumer electronics devices.
  • Used in communication equipment audio.
  • Applicable in portable audio players.

CS4207-CNZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the CS4207-CNZ?

The CS4207-CNZ operates within a temperature range of -40°C to 85°C.

What is the operating voltage range for the CS4207-CNZ?

The CS4207-CNZ operates with a voltage range of 2.97V to 5.25V.

What is the package type for the CS4207-CNZ?

The CS4207-CNZ comes in a 48-QFN package.

What is the resolution of the CS4207-CNZ?

The CS4207-CNZ has a resolution of 24 b.

What data interfaces does the CS4207-CNZ support?

The CS4207-CNZ supports HDA and S/PDIF data interfaces.

How many ADCs are included in the CS4207-CNZ?

The CS4207-CNZ includes 2 or 3 ADCs.

Does the CS4207-CNZ feature Sigma Delta modulation?

Yes, the CS4207-CNZ features Sigma Delta modulation.
