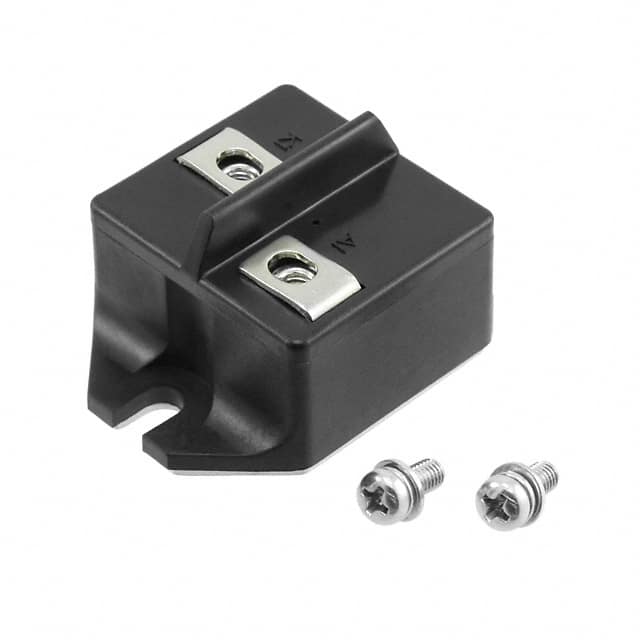

CS240650 Powerex CS240650 is a 600V, 50A fast recovery single diode module in a POW-R-BLOK chassis mount package.
Mfr Part #:

CS240650

Available from 1 distributors
Mfr Name: Powerex Inc.
Powerex Inc.
Powerex CS240650 is a 600V, 50A fast recovery single diode module in a POW-R-BLOK chassis mount package.
✓ Total Stock: 2,524 pcs

CS240650 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,524 pcs
On Request
2524 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CS240650 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Halogen Free
Industrial Grade
Mounting Type
Operating Temperature Range
Package / Case
Reverse Recovery Time
Reverse Recovery Time (trr)
Speed
Storage Temperature
Supplier Device Package
Technology
Voltage
View Similar Products (0)

CS240650 Description

Short technical summary and product information.

The Powerex CS240650 is a fast recovery single diode module rated for 600V peak reverse blocking voltage and 50A DC current. It features a maximum peak one-cycle surge current of 1000A at 60Hz and an I2t rating of 4165 A²s for fusing. The module offers a reverse recovery time of 0.8 µs and a reverse recovery charge of 30 µC, making it suitable for high-speed switching applications.



Designed for chassis mounting, the POW-R-BLOK module provides isolated mounting for easy integration with common heatsinks. The junction-to-case thermal resistance is 0.6 °C/W, and the operating junction temperature range is -40 to 150 °C. The module is UL recognized.



Typical applications include inverters, choppers, switching power supplies, and free-wheeling circuits. The module weight is 90 g.

CS240650 Quick Information

Product Type: Fast Recovery Single Diode Module
Series: CS240650
Canonical Name: Powerex CS240650 Fast Recovery Single Diode Module, 600V, 50A
Subcategory: Single Diode Module

CS240650 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

CS240650 Features

  • 600V peak reverse blocking voltage rating.
  • 50A DC current at 105°C case temperature.
  • 0.8 µs fast reverse recovery time.
  • Isolated POW-R-BLOK chassis mount package.
  • UL recognized for power switching semiconductors.

CS240650 Applications

  • Used in inverter and chopper circuits.
  • Ideal for switching power supplies.
  • Suitable for free-wheeling diode applications.
  • Designed for high-speed switching modules.

CS240650 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the peak reverse blocking voltage of the CS240650?

The peak reverse blocking voltage (V_RRM) is 600 V.

What is the maximum DC current rating?

The maximum DC current (I_F(DC)) is 50 A at a case temperature of 105°C.

What is the forward voltage drop?

The peak on-state voltage (V_FM) is 1.5 V at a forward current of 50 A.

What is the reverse recovery time?

The reverse recovery time (t_rr) is 0.8 µs (800 ns) at 50 A, 150°C, and di/dt = -200 A/µs.

What package does the CS240650 come in?

The CS240650 is supplied in a POW-R-BLOK module package for chassis mount installation.
